RotorX RX122 Atom V3 4" Frame Kit

The Atom V3 is a 4" Quadcopter frame made of Carbon Fiber 3K which, at this scale, offers a near invincible backbone from which to build.

Click here to view the Atom V3 build guide and build videos.

Specifications

• Frame Weight: 68g (with hardware)
• Max Prop Size: 4"
• Recommended Motor Sizes: 1306 and 1105
• Recommended Battery: 700mAh, 3S to 4S

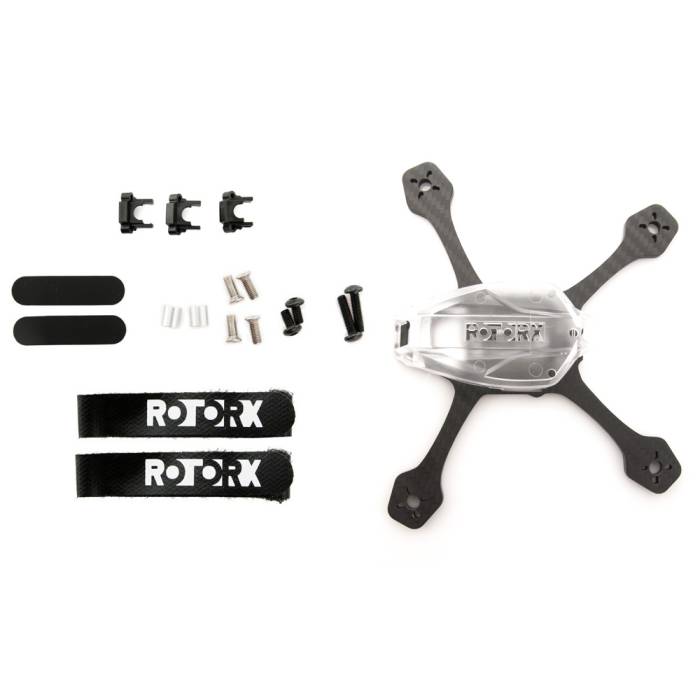

Includes

• 1x Atom V3 4" base plate
• 2x M3x6mm Steel Hex Screw (Black)
• 2x M3x12mm Steel Hex Screw (for mounting through selected cam mount and canopy)
• 4x M3x6mm Countersunk Philips Head screw (For mounting SMA adapter to canopy)
• 2x M3x6mm Raw Aluminium standoffs (for mounting top rear of powercube for canopy)
• 1x Atom Canopy (Polycarbonate) Clear
• 2x Rubber stick pads for battery friction mounting
• 2x Battery Strap
