Ritewing Spec Wing MG Digital Servo
Ritewing’s newly engineered Spec wing. Legal to race in the Spec Wing class.
Share

About this product

RiteWing Spec MG Digital Servo Set.

Specifications

  • Digital Metal Gear Servo 2.7kg / 0.13sec / 12.5g
  • Model: RW12 GRMG
  • Operating Voltage: 4.8V / 6.0V
  • Operating Current: 200mA / 240mA
  • Operating Speed: 0.14sec.60º/ 0.13sec.60º
  • Stall Torque: 2.5kg.cm / 2.7kg.cm
  • Size: 22.5X11.5X24.6mm(0.88"x0.45"x0.96")
  • Weight: 12.5g
  • Dead Band: ≤3uSec
  • Operating Travel: 40º/one side pulse traveling 400us
  • Potentiometer: 2 slider/Direct Drive
  • Ball bearing: MR85
  • Gear: Metal
  • Connector wire: 215mm
  • Operating Temperature Range: -20J+60J

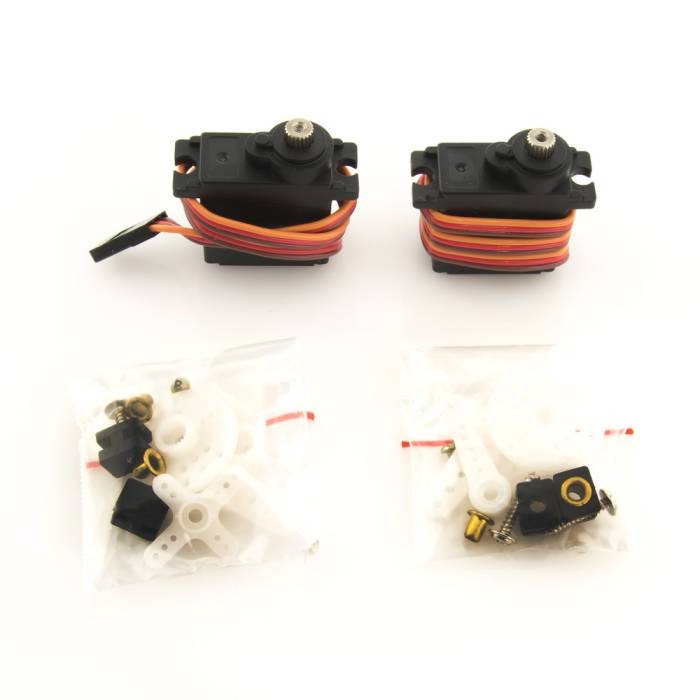

Includes

  • 2x Spec MG Digital Servos
  • 2x Servo Hardware Pack


More Information

SKU 7590
UPC (GTIN) 704817766967
Manufacturer Ritewing
Country of Manufacture United States
NDAA Compliant No
