R3300 3.3 GHz 16 Channels Receiver V2

The R3300 V2 has higher sensitivity than its predecessor on all sixteen (16) user selectable channels, providing a very stable and solid video reception on 3.3 GHz band. It is compact and is a great addition to any ground station.

It's highly recomended upgrading the low cost stock antenna to get the performance of your 3.3 GHz FPV system

Features

• -Sixteen (16) selectable phase lock loop (PLL) channels.
• (A & B 8+8 channels)

(Group A)

• CH1: 3320
• CH2: 3345
• CH3: 3370**
• CH4: 3395
• CH5: 3420
• CH6: 3445
• CH7: 3470**
• CH8: 3495

(Group A)

• CH1: 3310
• CH2: 3330
• CH3: 3355
• CH4: 3380
• CH5: 3405
• CH6: 3430
• CH7: 3455
• CH8: 3480

• - Composite video, supports NTSC and PAL standards.
• - FM-FM modulation
• - 6.5MHz audio sub-carrier (Stereo).
• - Audio channel: 1 Channel built-in microphone.
• - DIP switch channel selection.

• - SAW Filter Bandwidth: 16 MHz
• - RF sensitivity -90dBm (typical).
• - Operating Current:
• - Video input voltage 75-ohm impedance 1Vp-p.
• - Audio input voltage 10k ohm impedance 1Vp-p.
• - Power-On LED indicator.
• - Operating Voltage: 5-16 VDC
• - Dimension 86x 50.8 x 12.7mm.
• - Weight Without Antenna: 60g (2oz)
• - Power Cable: JST to Barrel 3.4mm x 1.4mm (Center Positive)
• - Accessory kit includes antenna and RCA A/V cable.

Slide off the cover of the DIP switches and use its tip as tool for easy channel change. Also keep the A/B switch on A position.

Specifications

We highly recomended upgrading the low cost stock antenna to get the performance of your 3.3 GHz FPV system

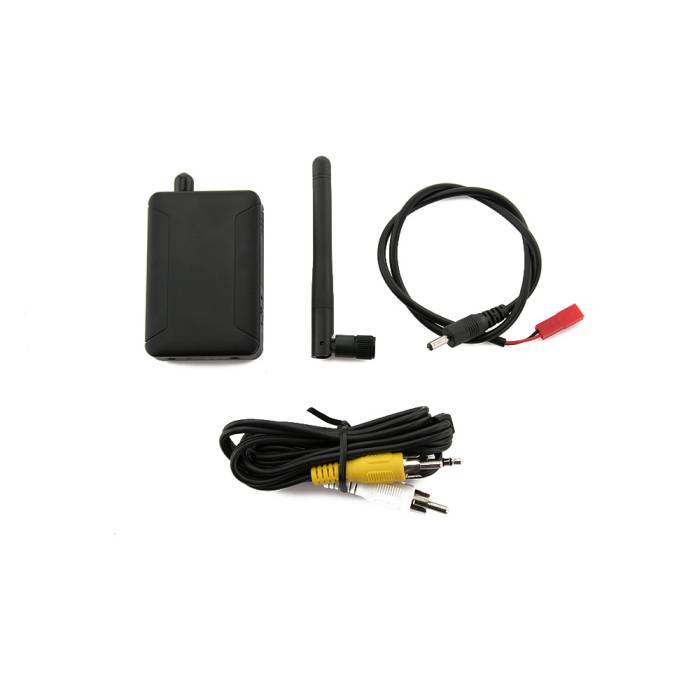

Package includes:

• 1 x R2400 Pro 2.4 GHz Standard Receiver
• 1 x Antenna (Whip)
• 1 x RCA Cable
