NewBeeDrone Infinity200 45A 3-6S BLHeli_32 4-in-1 20x20 ESC
$79.99
Out of Stock
Only left for same day shipping. Order now!

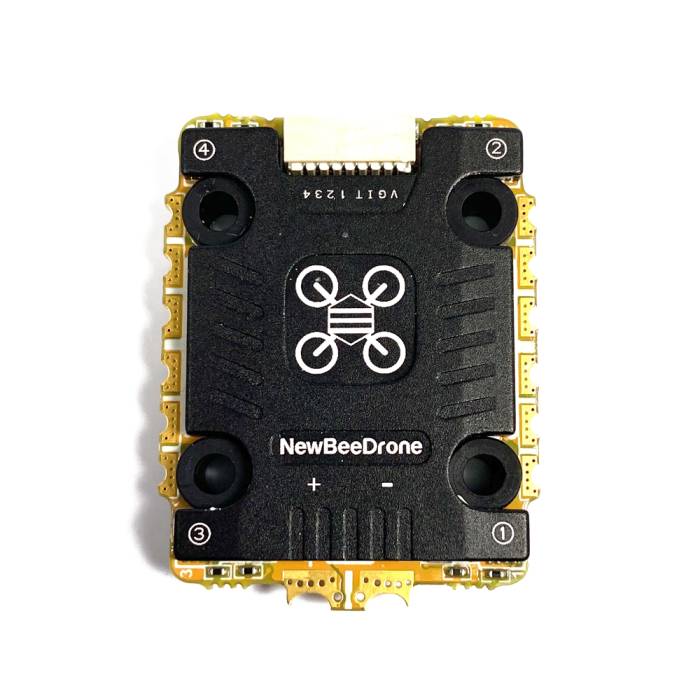

NewBeeDrone Infinity200 45A 3-6S BLHeli_32 4-in-1 20x20 ESC
This NewBeeDrone Infinity200 ESC is a quality 20x20 ESC that is also plug-and-play with the DJI Digital FPV System!
About this product
This NewBeeDrone Infinity200 ESC is a quality 20x20 ESC that is also plug-and-play with the DJI Digital FPV System!
Video: Infinity Stack Quick Look
Note: Stack not included, ESC Only.
Features
- Heatsink
- Solder pad ready for signal and power
- Smoov Performance Design by TeamNBD
Specifications
- LiPo Power input: 3S-6S
- ESC Programming: BLHeli32
- Cont.Current: 45Ax4
- Burst Current: 55Ax4
- Weight / Size: 13.0g / 39x29.5x8mm
- Mounting holes: 20x20mm
- Signal plug JST1.0 8pin plug with NBD Infinity200FC
- 8 Layer PCB with 2Oz Copper
- BLHeli32 Programable Sided RGB LED x4
Includes
- 1x NewBeeDrone Infinity 200 45A 3-6S BLHeli_32 4-in-1 20x20 ESC
- 4x Grommets short 4x Grommets Long
- 5x Steel Screw 25mm
- 13x Nylon Locknut
- 1x Infinity20 FC to Infinity20 ESC cable 30mm
- 1x Infinity20 FC to Infinity20 ESC cable 50mm
- 1x Infinity20 FC to Infinity20 ESC cable 85mm
- 470uf 35v Electrolytic capacitor
More Information
| SKU | 15417 |
|---|---|
| UPC (GTIN) | 751313222244 |
| Manufacturer | NewBeeDrone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 45 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
