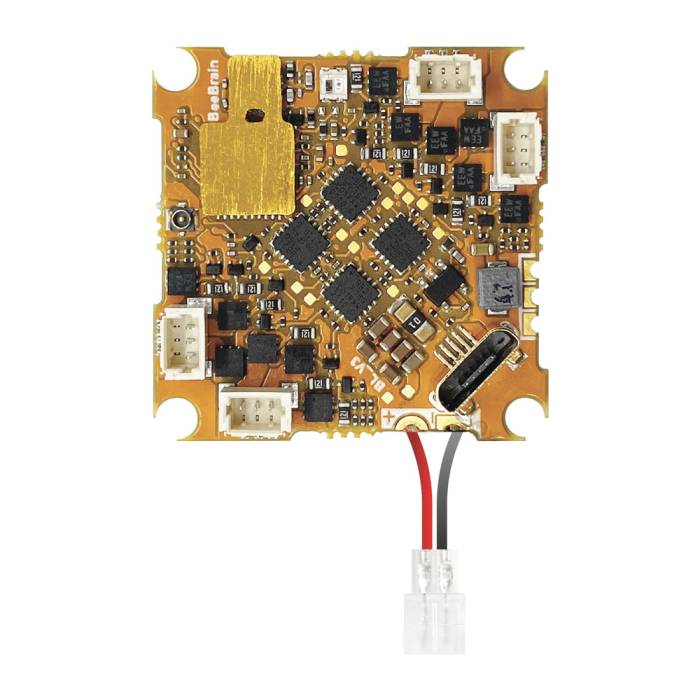

NewBeeDrone BeeBrain BLV3 AIO F4 FC+ 12A BLHeli_S 1-2S ESC

The NewBeeDrone BeeBrain BLV3 AIO FC contains massive improvements to the performance of the built-in FrSky receiver and video transmitter. In addition, the MOSFETs were upgraded to support the power demands of micro toothpick drones.

The soldering pads on each ESC were enlarged to enable custom builds! With plenty of surface area and spacing, you can now solder on any motor of your choosing. One of our favorite applications of the BeeBrain BL is in micro drones. Since the BeeBrain BL integrates the flight controller, ESCs, receiver, and video transmitter all in one package, it's insanely easy and clean to build.

Features

Receiver Improvements - 50% More Range

• Optional wiring harness is available to install an external receiver (Crossfire, Ghost, etc)
• Optimized SPI Receiver hardware to improve efficiency within the receiver.
• Additional low noise amplifier to increase range.
• Removable antennas.

Video Transmitter Improvements - 120mW

• New heatsink and layout to increase heat dispersion and efficiency.
• Transmitting power increased to 120mW from 25mW (V2)

Note: The default power mode is low (5mW). Set the power level to medium (50mW) before flying.

Specifications

• UART2 TX and RX are free for the external receiver (un-inverted SBus signal only)
• Weight: 6 grams (including antennas and battery connector)
• Size: Outer dimensions 29 x 29 x 7.6 mm
• Firmware: 48kHz JESC (unlicensed)
• Mounting Pattern: 25.5 x 25.5 mm
• MCU: STM32F411 MCU
• Battery input: 1–2S
• FC Processor: F411
• Channels: 4
• Amps: 12A

Includes

• 1x NewBeeDrone BeeBrain BL V3 Flight Controller
• 1x JST 0.8 Wire for External Receiver
• 2x Receiver Antennas (IPEX-3)
• 1x VTX Antenna
• 4x Grommet
• 4x Screw
