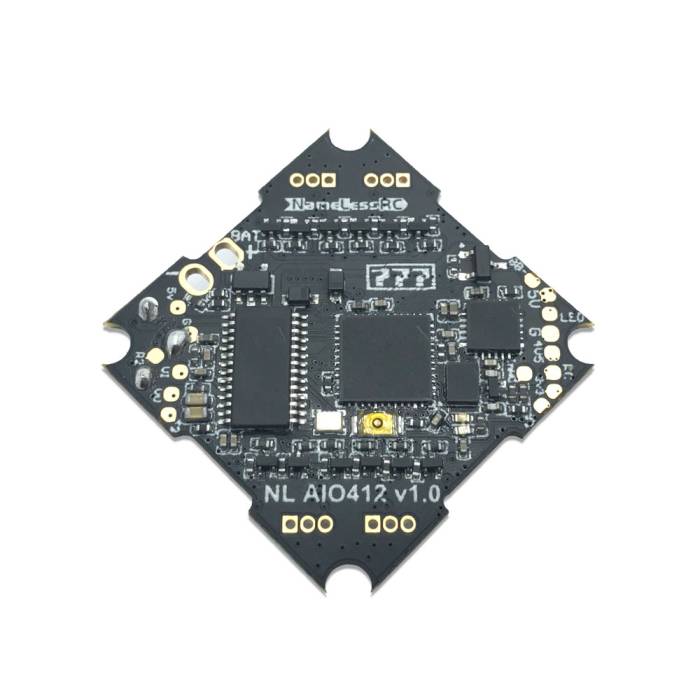

NameLessRC AIO412 F4 12A 2-4S HV AIO Micro Flight Controller

NamelessRC's lightweight and easy to install AIO412 F4 12A 2-4S FC is perfect for your lightweight whoops and toothpick drones! This FC supports 4S voltage up to 12A current for crazy fast power.

It comes with a host of features like integrated with Betaflight OSD, 5V 2.5A BEC, LC filter, 4s support, buzzer support, and more, this AIO board boasts a lot of options over other AIO boards in the micro category.

Features

• The largest support 4S Lipo HV battery, with Current meter
• F411 Flight Controller, BEC 5V 2.5A
• MPU6000 Gyro
• Include Buzzer pad
• Invert and non-invert SBUS port
• Light design

Specifications

• Brand name: NameLessRC
• Item name: NameLessRC AIO412（FC+ESC AIO）
• Processor: STM32F411
• Sensor: MPU-6000 (connected by SPI)
• Input Voltage: 2-4S Lipo or 2- 4S HV Lipo
• Size: 28.5×28.5mm
• Weight: 4.2g(W/O battery wire)

FC Specifications

• CPU: STM32F411CEU6 (100MHZ )
• Six-Axis: MPU6000 (SPI connection)
• Size: 28.5×28.5mm board
• Built-in 5V 2.5A BEC with LC filter
• OSD: Built-in BetaFlight OSD
• Receiver: Support DSM2/X receiver, Frsky XM/XM+ Receiver, Frsky R9M -Futaba Receiver, Flysky Receiver, TBS Crossfire Receiver
• Support programmable LED
• Built-in current sensor
• Weight: 4.2g(W/O battery wire)

ESC Specifications

• Power supply: 2-4S LiPo/LiPo HV (7.4v/17.4v)
• Continue current: 12A
• Peak current: 15A
• Firmware: BLHELI_S
• Motor Connectors: 1.25mm header pins connector
• Default protocol: DSHOT600

Includes

• 1 x NLRC AIO412 F4 12A 2-4S HV Flight Controller
• 1 x Hardware pack
• 4 x Pin headers

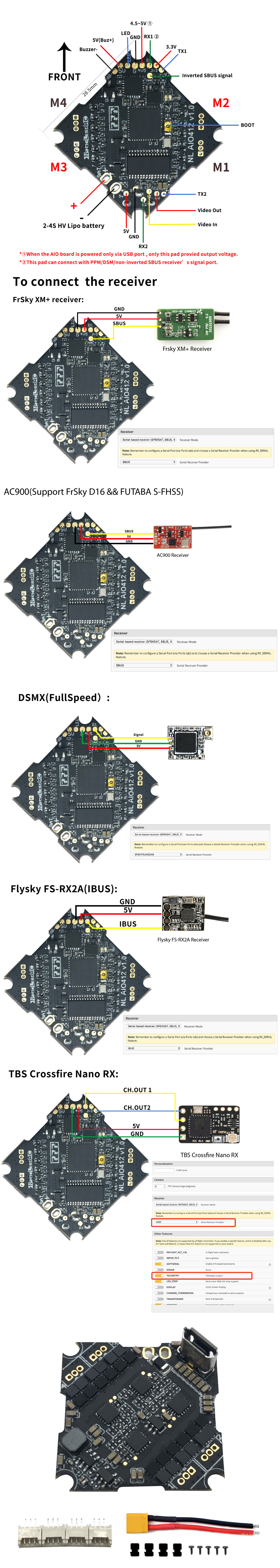

Manual
