Lumenier SMC-600 Super Mini Cased - 600TVL Wide Angle Camera
$38.99
Out of Stock
Only left for same day shipping. Order now!

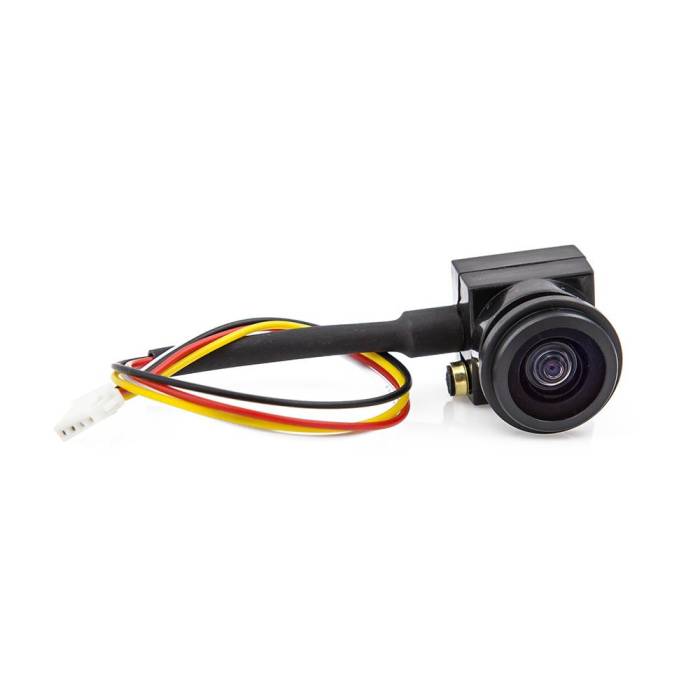

Lumenier SMC-600 Super Mini Cased - 600TVL Wide Angle Camera
The Lumenier SM-600 Super Mini with case - 600TVL Wide Angle Camera - Micro sized for small aircraft
About this product
This is a super small camera (15x15x20mm) weighing in at only 10 grams including a protective case and delivering an excellent FPV picture at 600tvl. The 120 degree FOV gives you a super-wide and full forward view, while supporting an input voltage of 3.3-5v (1s Lipo) making it perfect for micro 1s setups. The camera has an imbeded mic making it easy to send audio via a A/V transmitter. Use this camera in an aircraft where size and weight is important; perfect for small multi-rotors, airplanes and even RC cars.
Specifications
| Sensor | Single chip 1/4 CMOS |
| System | NTSC |
| Pixels | NTSC：648（H）×488（V |
| Image Signal Proccess | Digital Signal Processing System |
| Sensor Dimension | 3.59mm（H）×2.70mm（V） |
| Horizontal Resolutions | Approximately 600TV Lines |
| Sensitivity | 0.1Lux/F1.2 |
| Lens & View Angle | 1.8mm F1.2/120 ° |
| S/N Ratio | 48dB |
| Electronic Shutter | NTSC（1/50 S TO 1/100000）S |
| Auto Gain Control | AUTO |
| White Balance Control | AUTO |
| Back Light Compensation | AUTO |
| Microphone | Built into camera |
| Video Out | 1.0V p-p/75ohm |
| Size (L x W x H) | 15x15x20mm |
| Weight | 10g |
| Working Current | 50mA |
| Power Requirement | DC 3.6V-5V (over 5v will damage the camera) |
| Operating Temperature | - 10° C ~ +50°C ，less than 90% RH |
| Connection | Red - Vin, Black - Ground, Yellow - Video Signal, White - Audio |
More Information
| SKU | 2560 |
|---|---|
| UPC (GTIN) | 652118489989 |
| Manufacturer | Lumenier |
| NDAA Compliant | No |
