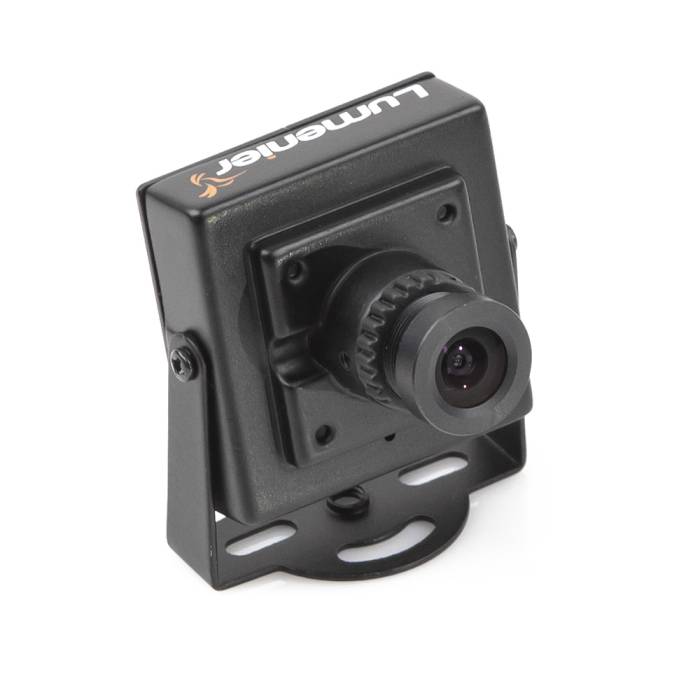

Lumenier CS-800 Super - 800TVL S-WDR Camera (w/ case)
The CS-800 Super with case - 800TVL D-WDR is a high resolution FPV camera. This camera has been replaced with the newer CM-650 camera.
About this product
This professional camera utilizes Sony's 960H Double Scan CCD, and Effio-V 4141GG DSP (advanced version of Effio-P) which can produce an image of 800TVL high resolution. Besides the high resolution, it has a powerful OSD with impressive functions, super WDR (Wide Dynamic Range), 3D-DNR (Digital Noise Reduce) and Auto AGC or AGC+ slow shutter (sense up). It ships with a wide angle 2.8mm lens, useful for FPV.
Features
- Protective metal case
- Blocks IR light for better color
- Color 800TVL High Picture Quality
- Sony 960H Double Scan CCD and Effio-V 4141GG DSP
- Default 2.8mm lens
- Removable OSD menu
- S-WDR
- DNR (Digital Noise Reduction)
- Low Power Consumption
- Back light compensation (BLC)
- Image mirroring functionality
- Anti-exposure function
- Low illumination: 0.1Lux
- White dot repair
- Weight: Board camera alone 15g
- Over current protection, electrical surge protection and lightning protection
- DC 9V-12V Power input (3s Lipo battery)
Specifications
| Chipset | 1/3" Sony double scan CCD+SONY CXD4141GG DSP |
| System | NTSC |
| WDR | FULL FUNCTION/NORMAL/LIGHT |
| SYNC | Inner sync |
| Shutter | 1/53~1/10000s |
| AGC | AGC/ AGC + Slow shutter |
| S/N Ratio | ＞50dB (AGC OFF) |
| Video Output | 1.0Vp-p, 75ohm |
| Resolution | 800TVL |
| Minimum Illumination | Color: 0.1Lux (F1.2,50IRE,AGC ON); |
| B/W:0.001Lux (F1.2,50IRE,AGC ON) | |
| D/N Switch | Color /Auto |
| D/N Switch Time | 0~255 |
| Lens Style | Manual/Auto |
| Privacy Zones | 1~15 zones |
| Motion Detect | 4 Zones |
| Video Output | BNC |
| White Balance | ATW /PUSH/User1/ User 2/ Manual/ANTI CR/PUSH LOCK |
| Mirror | Vertical/ Horizontal / Vertical + Horizontal /Off |
| Title | Can be set |
| Title Position | Any position on the screen |
| DNR | High/Medium to high/Medium/Low to medium/Low/Off |
| OSD | CHINESE/ENGLISH/JAPANESE/ESPANOL /PYCCKNN/DEUTSCH/FRANCAISE/PORTUGUESE |
| Pic Contrast | 0-63 |
| Pic Sharpness | 0-15 |
| Power | DC12V±10% (AC24V optional) |
| Wattage | 2.0W |
| Size | 32X38 mm |
| Operating Temperature | -10C~50C |
| Operating Humidity | <90% |
| Storage Humidity | 20～95% |
Sample Video
More Information
| SKU | 1992 |
|---|---|
| Manufacturer | Lumenier |
| NDAA Compliant | No |
