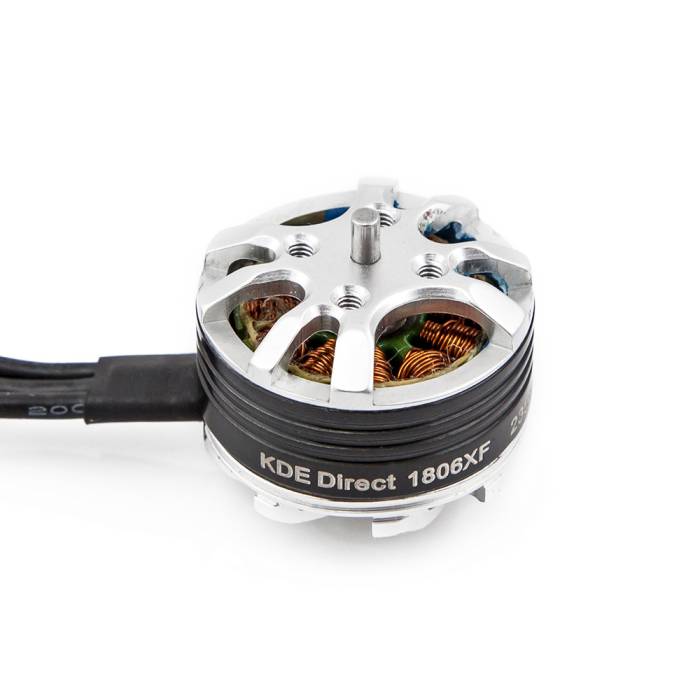

KDE 1806XF-2350 Brushless Motor
Out of Stock
About this product
Motors designed for competition-level FPV racing, maximum performance, and extended-life durability.
The new KDE Direct 1806XF-2350 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.
Motor includes 200°C, 20 AWG, 200mm silicone-wire leads and Ñ„3.5mm 24k Bullet Connectors (pre-soldered to the motor leads and ESC female bullets included).
Material: Neodymium N45UH, 2350Kv
Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M2 x Ñ„12mm, M2 x Ñ„16mm.
Includes
- One (1) KDE Direct XF UAS M4 Propeller Adapter Assembly
- One (1) KDE Direct XF UAS Propeller Bracket Assembly (18XX/22XX Edition)
- One (1) KDE Direct XF UAS M4 Propeller Adapter (Ñ„2.0 x Ñ„3.0 x 3.5mm)
- One (1) KDE Direct XF UAS Propeller Bracket Adapter (Ñ„3.0 x Ñ„4.0 x 1.25mm)
- One (1) KDE Direct XF UAS Propeller Bracket Adapter (Ñ„2.0 x Ñ„3.0/Ñ„4.0 x 3.25mm)
- Three (3) KDE Direct XF Ñ„3.5mm 24K Bullet Connectors (Female)
- Four (4) M2 x 0.4 x 5 mm Flat Head Phillips Head Machine Screws (Class 12.9)
- Six (6) M2 x 0.4 x 5 mm Socket Head Cap Screws (Class 12.9)
Finish
- Clear anodize, mirror-polish CNC gloss endbells
- Black electro-plate, CNC gloss central core (flux ring)
Specifications
| Kv | 2,350 RPM/V |
| Maximum Current | TBD |
| Maximum Power | TBD |
| Continuous Current | 18+ A |
| Continuous Power | 265+ W |
| Maximum Efficiency | > 90% |
| Voltage Range | 8.4 V (2S) - 16.8 V (4S) |
| Io (@10V) | 0.5 A |
| Rm (Wind Resistance) | 0.131 Ω |
| Stator Poles | 12 (12S14P) |
| Magnetic Poles | 14 (12S14P) |
| Bearings | Triple, 682ZZ, 692ZZ |
| Mount Pattern | M2 x Ñ„16 mm, M2 x Ñ„12 mm |
| Stator Class | 1806, 0.2 mm Japanese |
| Shaft Diameter | Ñ„2 mm (Ñ„2 mm Internal) |
| Shaft Length | 3.5 mm |
| Motor Diameter | Ñ„23 mm |
| Motor Length | 16.7 mm |
| Motor Weight | 18 g (25 g with Wires/Bullets) |
| Propeller Size | Up to 8" (5" Maximum on 4S) |
| Motor Timing | 22° - 30° |
| ESC PWM Rate | 8 - 16 kHz (600 Hz) |
Downloads
- KDE1806XF-2350 Performance Testing Data Sheet (PDF)
- KDE1806XF-2350 Design Geometry Dimensions Specification Sheet (PDF)
- KDE18xxXF Universal Mounting Pattern Specification Sheet (PDF)
- Design Presentation: XF M-R Series Brushless Motors Technology Review (PDF)
- KDE Direct Design Engineering - Episode VIII: XF M-R Brushless Motors (YouTube)
More Information
| SKU | 2737 |
|---|---|
| Manufacturer | KDE |
| NDAA Compliant | No |
| Motor Stator Size | 1806 |
| Popo Compatible | No |
