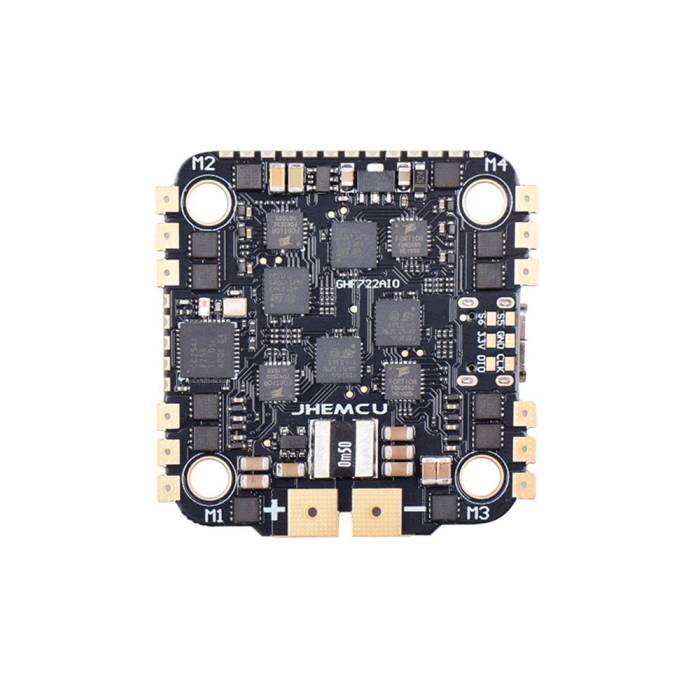

JHEMCU F722 AIO 40A BL32 3-6S Bluetooth Flight Controller for DJI

Out of Stock

Only left for same day shipping. Order now!
bell Notify me when this product is in stock
JHEMCU F722 AIO 40A BL32 3-6S Bluetooth Flight Controller for DJI
https://www.fpvcrate.com/products/jhemcu-bs-40a-30x30-4-in-1-esc
Share

About this product

This Bluetooth-compatible AIO FC from newcomer JHEMCU has an F722 processor along with a 40A 32bit 4in1 ESC all on one board.

Plug N' Play with the DJI system.

Specifications

Flight Controller

  • CPU：STM32F722RE
  • Sensor：MPU6000（SPI Connection）
  • OSD： AT7456E
  • Barometer：BMP280
  • Black box：16MB
  • Bluetooth：BL4.0 (NAME：JHEMCU)，Configuration UART3
  • BEC: 5V/2.5A, 10V/2.5A
  • ESC TX：UART1
  • HDVTX: DJI VTX->UART6
  • RC_IN: UART2
  • UART:UART1,UART2,UART3,UART4,UART5,UART6
  • USB：TYPE-C
  • IO2:MODE->USER2 Custom port
  • Size: 30.5*30.5MM (Max: 42*43MM)
  • Firmware: JHEF7DUAL
  • Receiver: SBUS, IBUS, DSM2, DSMX, TBS
  • Support programmable LED such as WS2812
  • Support buzzer
  • Built-in current sensor
  • Weight: 11.6 grams

ESC

  • BLHELI_32
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DSHOT1200
  • Input voltage: 3S-6S Lipo
  • Continuous current: 40A
  • Firmware: BLHELI_32 JHE_Aria_32_Multi

Includes:

  • 1x GHF722AIO-40A
  • 2x 14AWG red/black wire
  • 1x 1000UF/35V capacitor
  • 4x M3 Rubber shock absorber
  • 1x XT60

Jhemcu F722 3-6S AIO 30x30 Flight Controller for DJI for Sale



More Information

SKU 15264
UPC (GTIN) 789862858812
Manufacturer JHEMCU
Country of Manufacture China
NDAA Compliant No
Mounting Pattern 30.5x30.5mm
Flight Controller Processor F7
