Holybro Tekko32 F3 45A Mini 4-in-1 ESC
$56.99
Out of Stock
Only left for same day shipping. Order now!

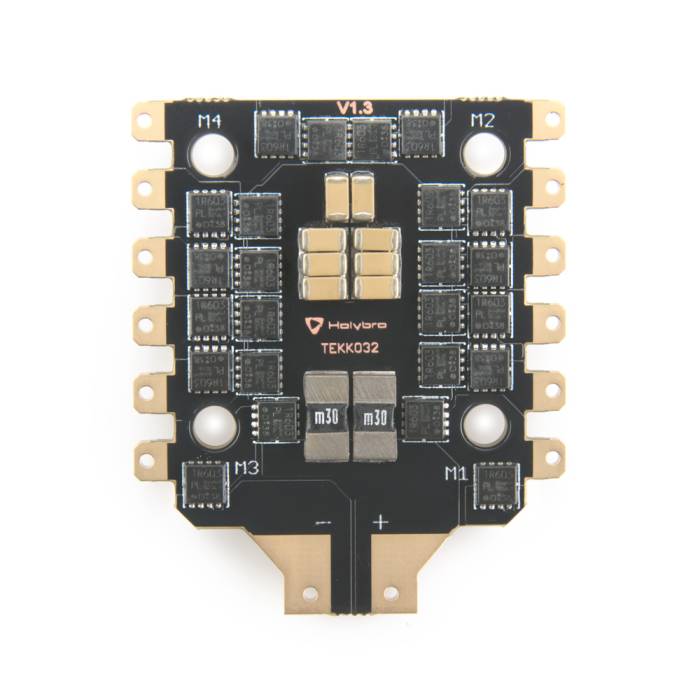

Holybro Tekko32 F3 45A Mini 4-in-1 ESC
New BLHELI32 ESC with F3 MCU, gives smooth control and faster power response. 4x 45A F3 BLHELI32 ESC in a 20×20 mounting pattern.
About this product
New BLHELI32 ESC with F3 MCU, gives smooth control and faster power response. 4x 45A F3 BLHELI32 ESC in a 20×20 mounting pattern. Supports up to 50A burst and 45A continuous current.
Specifications
- F3 MCU, runs double faster than F051
- 32bit ESC with BLHELI32 firmware
- Supports 3-6S lipo input
- PWM input, TLM supported
- Voltage output (VBAT)
- NO BEC
- Supports one-shot / Multishot / Dshot PWM
- Supports damped light
- Ext. cap needed for 6s (470uf 35v for 6s usage.)
- Mounting holes M2, 20x20mm
- Size:30 x 36 mm
- Weight: 7.8g

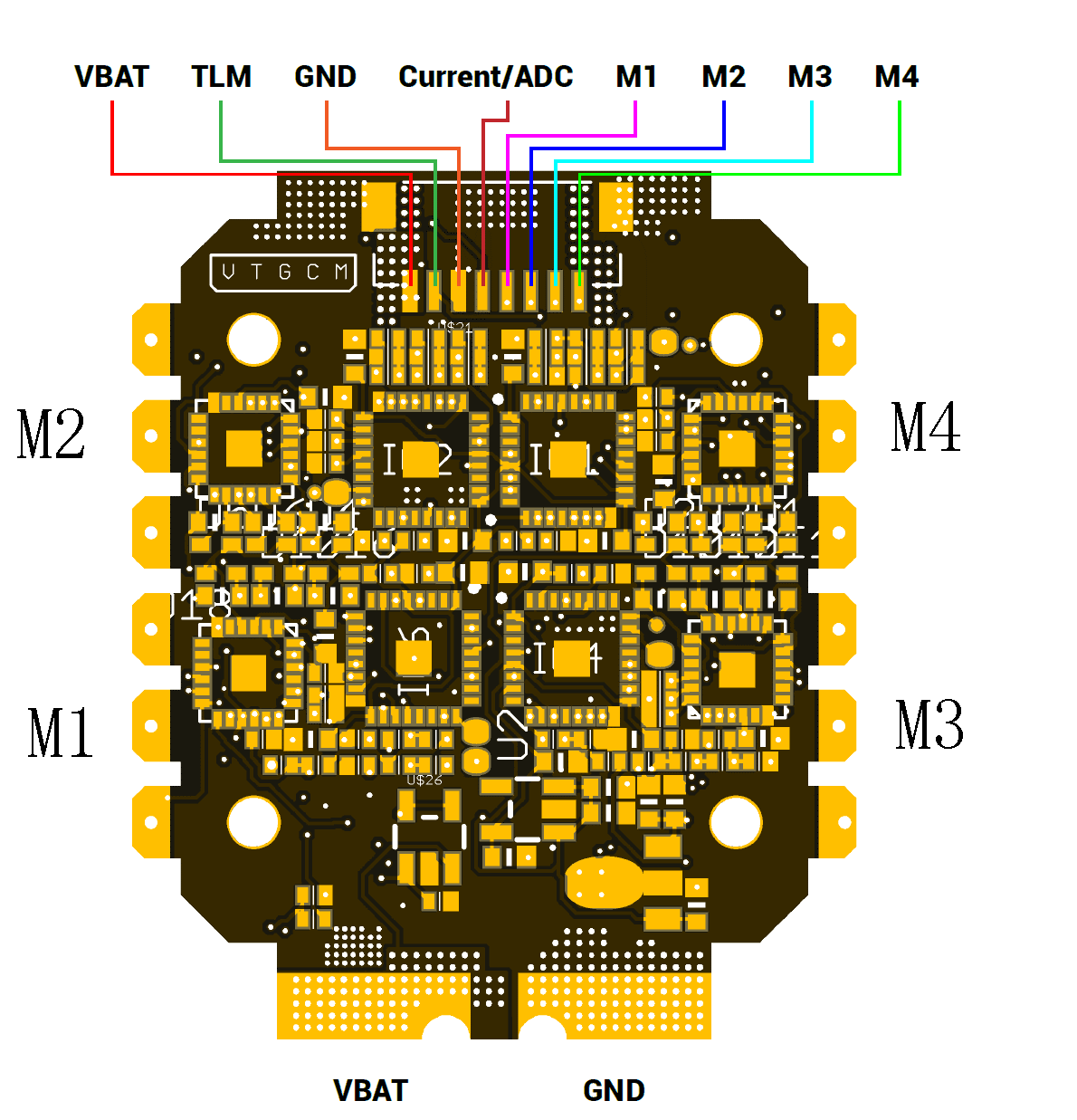

PIN MAP:
Package included:
Tekko32 F3 4in1 45A mini ESC *1
Electrolytic capacitor: 470uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Some Tips:
More Information
| SKU | 10140 |
|---|---|
| UPC (GTIN) | 082652054938 |
| Manufacturer | Holybro |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 45 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
