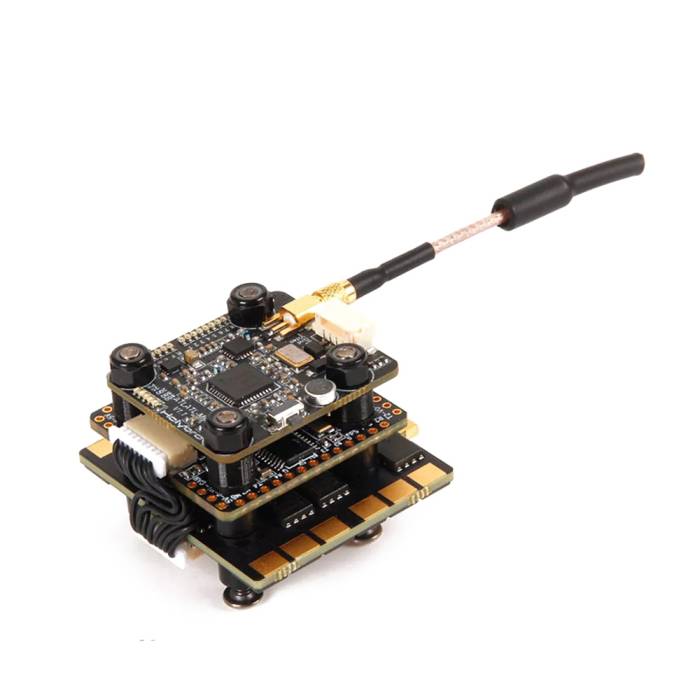

Holybro Mini Stack - Kakute H7 FC + Tekko32 F4 BigFET 50A ESC + Atlatl HV Micro VTX - 20x20

The Kakute H7 Mini Stack is a complete electronic stack from Holybro that features premium components for your multirotor! This stack comes with the Holybro Kakute H7 Flight Controller, Tekko32 F4 BigFET 50A 4-in-1 ESC, and the Atlatl HV Micro VTX.

Specifications

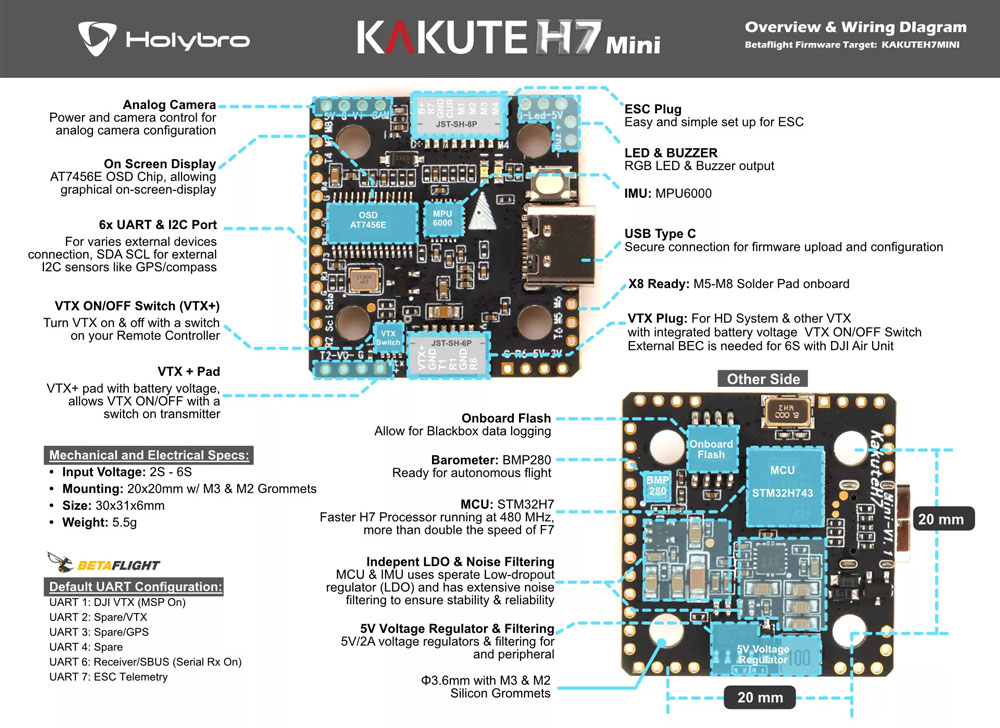

Holybro Kakute H7 Flight Controller

• MCU - STM32H743 32-bit processor running at 480 MHz
• IMU - MPU6000
• Barometer - BMP280
• OSD - AT7456E
• Onboard Bluetooth chip - ESP32-C3
• SpeedyBee IOS & Android App Compatible
• Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
• 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
• 9x PWM Outputs (8 Motor Output, 1 LED)
• 2x JST-SH1.0_8pin port (4in1 ESCs, x8/Octocopter compatible)
• 1x JST-GH1.5_6pin port (For HD System like Caddx Vista & Air Unit)
• Battery input voltage: 7V to 42V
• BEC 5V 2A Cont.
• BEC 9V 1.5A Cont.
• Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
• Dimension - 35x35mm
• Weight - 8g

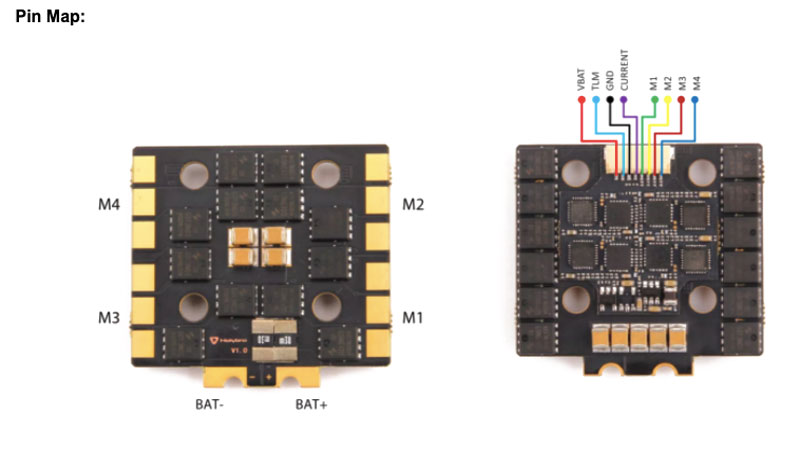

Tekko32 F4 Bigfet 50A 4-in-1 ESC

F4 MCU / PWM output up to 96K / 4~6S / BLHELI32
Tekko32 F4 BigFET is made for those that use 20x20 mount and also need the power of big MOSFET. The F4 MCU & quality big MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.

Features:

• New F4 MCU, much faster than F3 & F0
• PWM output up to 96K (default 48K)
• 20x20 Mount design with big MOSFET
• A separate drive & control circuit broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specification:

• Continuous Current: 50A x4
• Burst Current: 60A x4
• Supports 4-6S battery
• Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry Supported
• Onboard analog current sensor
• No output BEC
• BLHeli_32 firmware
• 1000uf 35v capacitor included (highly recommended for 6s setup)
• Amperage meter scale ratio: 168
• Dimensions: 39x36.5x6mm / Weight: 11.8g
• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

Atlatl HV Micro

Features

• Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
• Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
• SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
• All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
• MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
• LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
• Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
• 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
• Built-in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
• Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.

Specifications

• Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
• Audio: 6.5 MHz Mono
• Protocol：smart audio2.0
• Antenna Connector: MMCX
• Input Voltage: 7 to 28 volts (2-6S LiPo)
• Dimensions: 30x26mm
• Mounting Holes: Standard 20mm square to center of holes (M3)
• Weight: 3.6g

Includes

• 1x Kakute H7 Mini STACK
• 1x Electrolytic capacitor: 1000uF 35v
• 1x JST SH 8pin to 8pin 65mm cable
• 1x JST SH 8pin to 8pin 25mm cable
• 1x JST SH 6pin 150mm cable (The cable that goes to the CADDX Vista Air Unit is included)
• 1x JST SH 6pin to GH 8pin 150mm cable( The cable that goes to the DJI Air Unit is included)
• 1x JST SH 6pin to GH 8pin 80mm cable ( The cable that goes to the DJI Air Unit is included)
• 1x 80mm SMA--MMCX Cable
• 1x 60mm Antenna
• 1x 150mm 4pin JST GH wire

Manual

• Holybro Kakute H7 Mini Manual

• Tekko32 F4 BigFET 4in1 50A ESC SPEC

• Holybro_Atlatl_HV_micro_Manual
