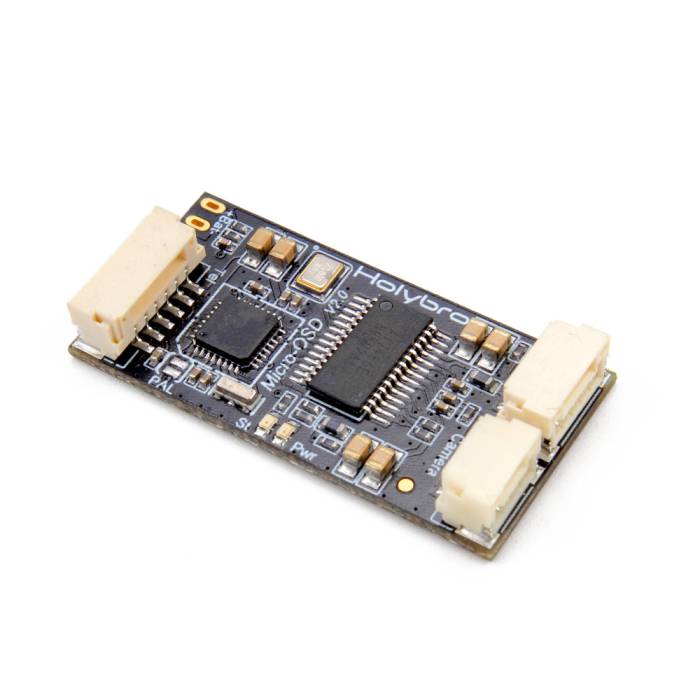

Holybro Micro V2.0 OSD

The Holybro Micro V2.0 OSD features a monochrome on-screen display, solder jumper for PAL video option, ATmega328P and more! Perfect for micro-sized applications, but works just as great with other electronics!

Note: BAT+ is directly connected with VTx and Camera (Pay attention to the max withstand voltage of your equipment)

Specifications

• ATmega328P with Arduino bootloader
• MAX7456 monochrome on-screen display
• Standard 6-pin ISP header
• Solder jumper for PAL video option
• Exposed test points for HSYNC and LOS
• Dimensions:17.5*35mm
• Weight: 3g

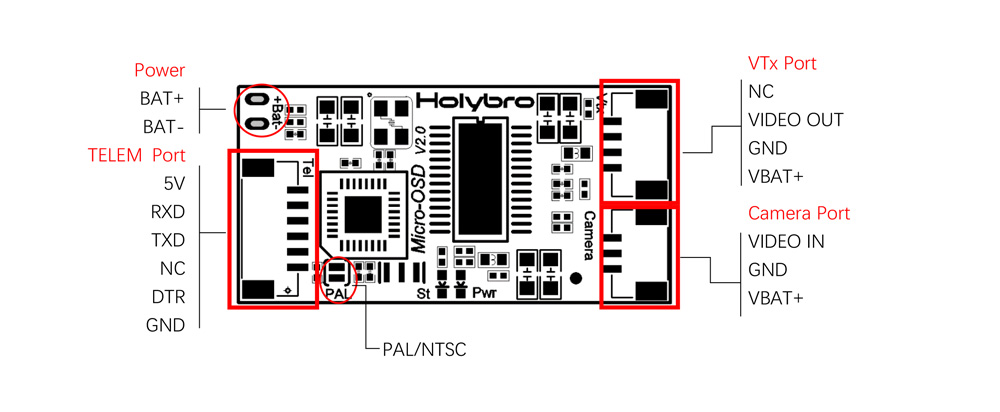

PINMAP

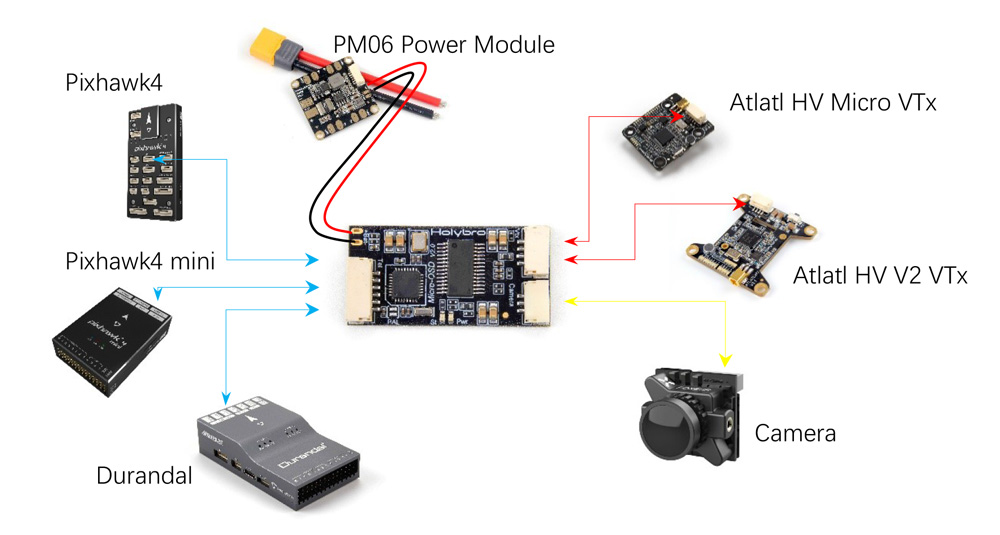

Connection

Manual

Includes

• 1 x Micro OSD
• 1 x GH 6P cable
• 1 x GH 4P cable
• 1 x GH 3P cable
