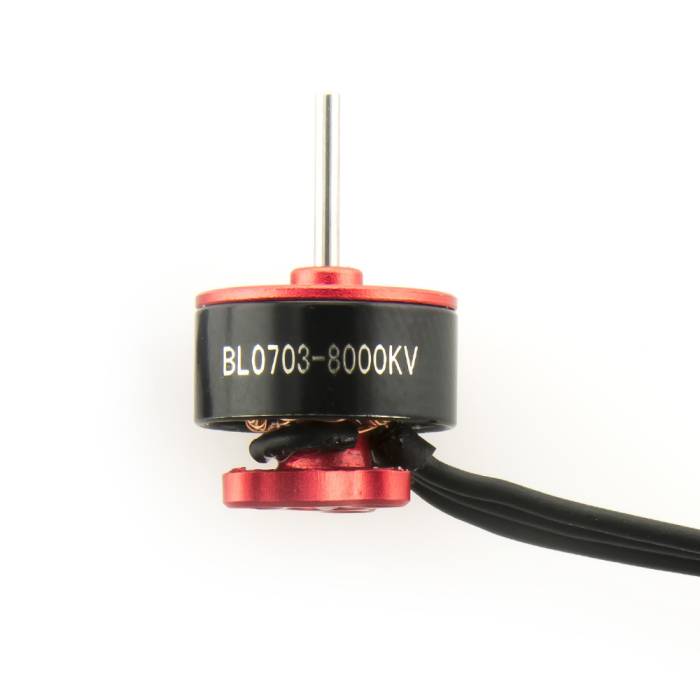

HLY BL0703 8000KV Brushless Motor
$9.99
$8.99
Out of Stock
Only left for same day shipping. Order now!
HLY BL0703 8000KV Brushless Motor
The HLY BL0703 8000KV Brushless Motor.
About this product
Racing Edition 0703 BL0703 8000KV 1-2S Brushless Motor For 60 80 100 RC Mini Multirotor.
Specifications
- Height: 16.2mm
- Width: 10mm
- Weight: about 1.9g
- Shaft: φ1.0mm
- KV (rpm/V): 8000
- Voltage: 3.7-7.4V
- Battery: 1-2S lipo battery
- Usage: for 60-100 class RC Mini Multirotor
| Item # | KV | Voltage | Pro | Load Current | Pull | Power | Efficiency | Lipo | Weight (g) |
| rpm/v | (V) | (A) | (g) | W | (g/W) | Cell | Approx | ||
| BL0703 | 8000 | 3.7 | 56mm X ¢1.0 2 blade | 0.9 | 11 | 3.3 | 3.3 | 1-2S | 1.9 |
| 7.4 | 1.8 | 20 | 13.3 | 1.5 | |||||
| 10000 | 3.7 | 1.2 | 15 | 4.4 | 3.4 | ||||
| 7.4 | 2.9 | 29 | 21.5 | 1.4 | |||||
| 12000 | 3.7 | 1.5 | 18 | 5.6 | 3.2 | ||||
| 7.4 | 3.3 | 34 | 24.4 | 1.4 |
Includes
- 1x BL0703 8000KV Brushless Motor
More Information
| SKU | 7213 |
|---|---|
| UPC (GTIN) | 704817760712 |
| Manufacturer | HLY |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Motor Stator Size | 1104 |
| Popo Compatible | No |
