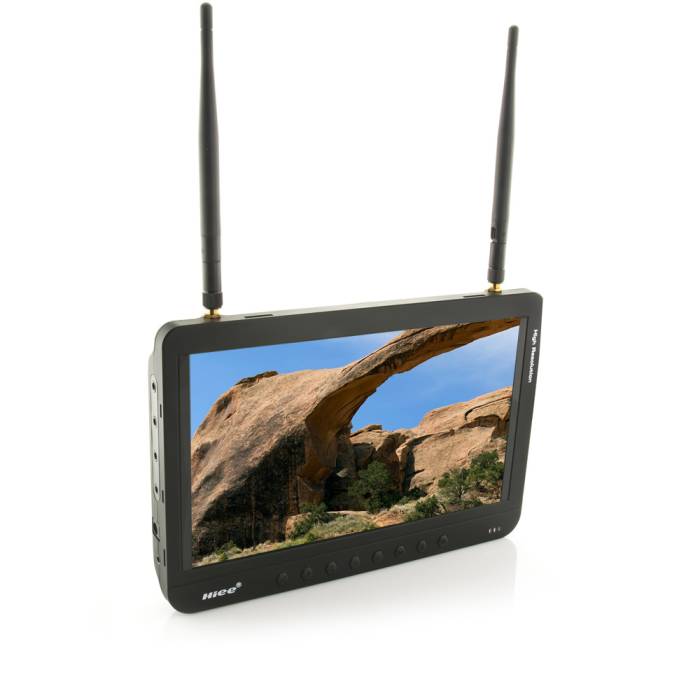

HIEE 9'' 5.8GHz Diversity FPV Monitor
$199.00
Out of Stock
Only left for same day shipping. Order now!
HIEE 9'' 5.8GHz Diversity FPV Monitor
The HIEE 9'' 5.8GHz Diversity FPV Monitor.
About this product
Built in 5.8GHz race-band receiver with antenna diversity to find the best available signal, compatible with Fat Shark race band allowing larger and interference free transmissions. Multiple input and output interfaces to cameras, computers and television.Optimized menus for setup and configuration. DNR (Digital Noise Reduction) smooths out video image. Easy to use front access controls and a 7.4V 1800mAh battery.
Note: Antennas come as RP-SMA, but there are RP-SMA to SMA adapters included.
Features
- 9 inch HD Resolution 1024 x 600
- HDMI-IN
- High brightness 500cd/m2
- 5.8ghz 40CH with R band
- A key for searching automatically
- Built-in removable 7.4V 1800MAH li-battery
- Big foldable sun hood included
Specifications
- Screen Type: TFT LCD
- Working Voltage: DC-IN 7.4-22.2V
- Input Power: 14.5W(DC 12V)
- Dimension: 198mm x 132mm x 26mm
- Working Temperature: -10℃~+ 65 ℃
- Weight : 490g
- Battery: 1800MAH li-po battery
| CH | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
| FR | FR1(A) | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| FR2(R) | 5658M | 5695M | 5732M | 5769M | 5806M | 5843M | 5880M | 5917M | |
| FR3(E) | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M | |
| FR4(F) | 5740M | 5760M | 5780M | 5800M | 5820M | 5940M | 5860M | 5860M | |
| FR5(B) | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M | |
More Information
| SKU | 7168 |
|---|---|
| UPC (GTIN) | 704817766417 |
| Manufacturer | Hiee |
| NDAA Compliant | No |
