HGLRC Zeus25 AIO - F722 FC + 25A 3-6S 4-in-1 BLHeli_32 ESC

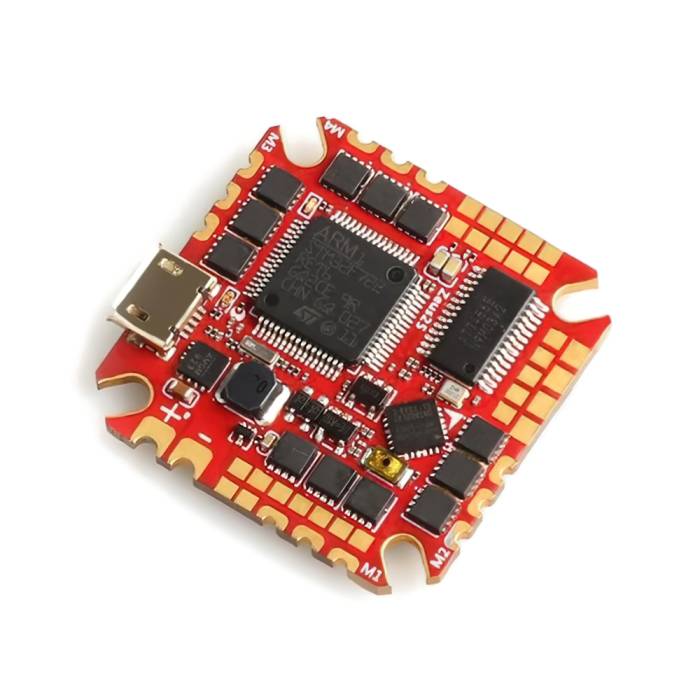

The HGLRC Zeus25 AIO has an F722 Flight controller combined with a 25A ESC. This stack has a mounting pattern that is compatible with 25x25-26.6x26.6mm patterns, and an F7 Flight Controller that has 3-6S direct lipo support. Equipped with an STM32F722 High-Performance Processor.

VIDEO: HGLRC Zeus25 // Zeus 25 AIO Flight Controller

Features

• Compatible 25x25-26.6x26.6mm Mounting Hole
• STM32F722 High-Performance Processor
• Enlarged Soldering Pad
• 25A BLHeli-32 ESC
• Preset 10V Pad
• F722 FC

Specifications

• FC Firmware:BF ZEUSF722_AIO(HGLR)
• Installing Hole:25.5X25.5mm.M2
• Dimensioms:32.5x32.5mm
• ESC Firmware:BL32
• Input Voltage:3-6S
• Weight:8.2g

25A 4-in-1 ESC

• Current Sensor: not supported
• Peak Current: 30A (10s)
• Constant Current:25A

F722 FC

• CPU:STM32F722
• MPU: MPU6000
• OSD: Support
• BlackBox: NO
• LED: Support
• BEC:10V/1A
• BEC:5V/2A
• UARTS:5

Manual

• HGLRC Zeus25 AIO Flight Controller

Includes

• 1x HGLRC Zeus25 AIO Flight Controller
• 4x M3 Shock Absorption (Red)
• 1x SH1.0 8PIN Cable 60mm
• 1x Connecting Wire (XT60)
• 1x Hardware Set
• 1x Capacitor
