HGLRC Zeus13 AIO - F722 FC + 13A 3-6S 4-in-1 BLHeli_32 ESC
$65.99
Out of Stock
Only left for same day shipping. Order now!

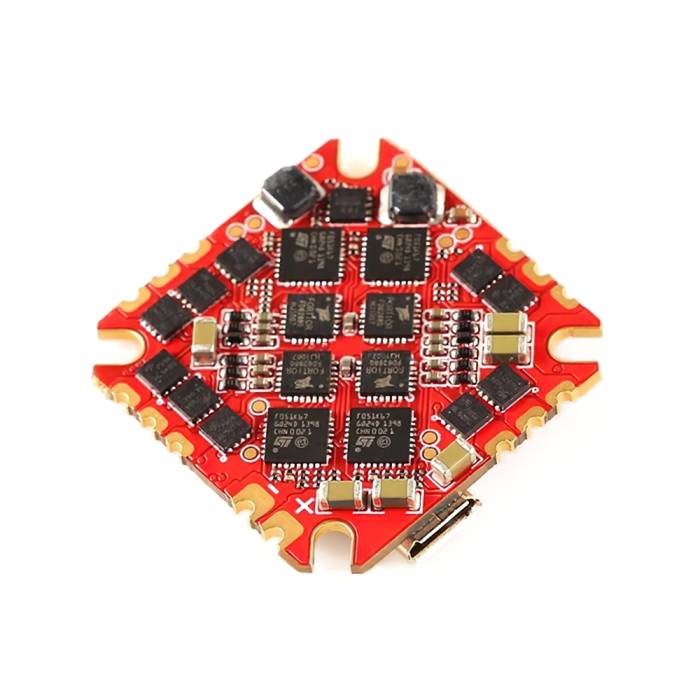

HGLRC Zeus13 AIO - F722 FC + 13A 3-6S 4-in-1 BLHeli_32 ESC
The HGLRC Zeus13 AIO has an F722 Flight controller combined with a 13A ESC. This stack has a mounting pattern of 25x25mm and an F7 Flight Controller that has 3-6S direct lipo support. Equipped with an STM32F722 High-Performance Processor.
About this product
The HGLRC Zeus13 AIO has an F722 Flight controller combined with a 13A ESC. This stack has a mounting pattern of 25x25mm and an F7 Flight Controller that has 3-6S direct lipo support. Equipped with an STM32F722 High-Performance Processor.
Features
- Compatible 25.5x25.5-26.6x26.6mm Mounting Hole
- STM32F722 High-Performance Processor
- Gold precipitation Craft on the side
- Enlarged Soldering Pad
- 13A BLHeli-32 ESC
- Preset 10V Pad
- Gyro MPU6000
- 8mm Blackbox
- F722 FC
Specifications
- FC Firmware:BF ZEUSF722_AIO(HGLR)
- Installing Hole:25.5X25.5mm. M2
- Dimensioms:32.5x32.5mm
- ESC Firmware: BL32
- Input Voltage:3-6S
- Weight:7.9g
13A 4-in-1 ESC
- Current Sensor: not supported
- Peak Current: 15A (10s)
- Constant Current:13A
F722 FC
- CPU:STM32F722
- MPU: MPU6000
- OSD: Support
- BlackBox: 8M
- LED: Support
- BEC:10V/1A
- BEC:5V/2A
- UARTS:5
Manual
Includes
- 1x HGLRC Zeus13 AIO Flight Controller
- 4x M3 Shock Absorption (Red)
- 1x SH1.0 8PIN Cable 60mm
- 1x Connecting Wire (XT60)
- 1x Hardware Set
- 1x Capacitor
More Information
| SKU | 15821 |
|---|---|
| UPC (GTIN) | 764613333565 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 13 Amps |
| Flight Controller Processor | F7 |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
