HGLRC Zeus F745 20x20 VTX Stack - F722 Flight Controller + 45A BL32 4-in-1 ESC

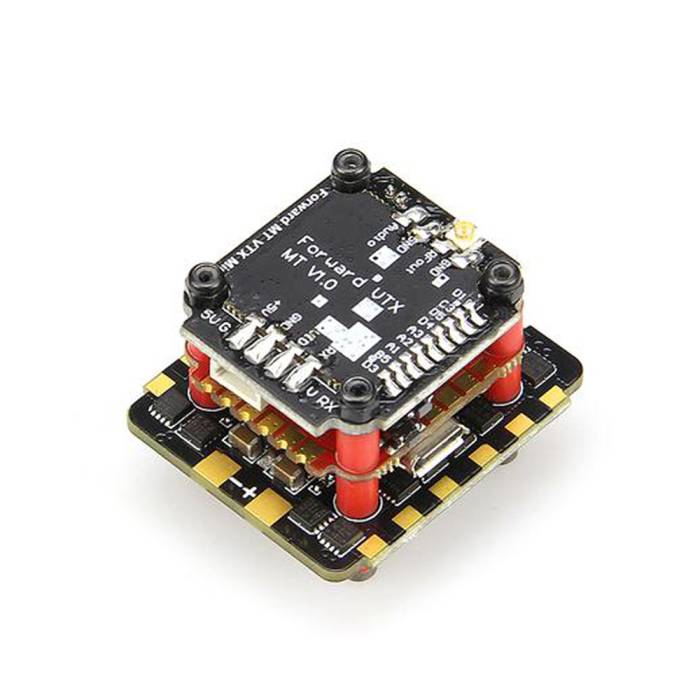

The Zeus F745 VTX Mini Stack by HGLRC comes with an F7722 Mini Flight Controller, 45A BL32 3-6S 4-in-1 ESC, and MT Mini 600MW VTX.
Share

About this product

The Zeus F745 VTX Mini Stack by HGLRC comes with an F7722 Mini Flight Controller, 45A BL32 3-6S 4-in-1 ESC, and MT Mini 600MW VTX. This stack can push 4S(45A) all while bringing you the latest features!

Specifications

  • Usage: for 100mm-450mm Frame Kit
  • Weight 22.2g
  • Item Name: Zeus F745-VTX STACK

F722 Mini Flight Controller

  • MPU: MPU6000
  • CPU:STM32F722 RET6
  • Input Voltage:2-6S Lipo
  • Weight:3.7g

45A BL32 3-6S 4in1 ESC

  • CPU:STM32F051
  • Input Voltage:2-6S Lipo
  • Steady Current:45-4S/35A-6SA
  • Peak Current:55A（5 Sec）
  • Weight:10.8g

MT VTX mini 600MW

  • Output power: PIT/25/100/200/400/600mW
  • Input:DC 5V
  • Antenna: MMCX
  • Weight:3.9g

Manual

Includes

  • 1 x F722 mini Flight Controller
  • 1 x 45A BL32 3-6S 4in1 ESC
  • 1 x MT VTX Mini 600mW


More Information

SKU 13223
UPC (GTIN) 751313215666
Manufacturer HGLRC
Country of Manufacture China
NDAA Compliant No
Mounting Pattern 20x20mm
Amps 45 Amps
Flight Controller Processor F7
Voltage 3-6 Cell (11.1v-22.2v)
ESC Firmware BLHeli_32
Number of ESC's 4 ESC's in 1
