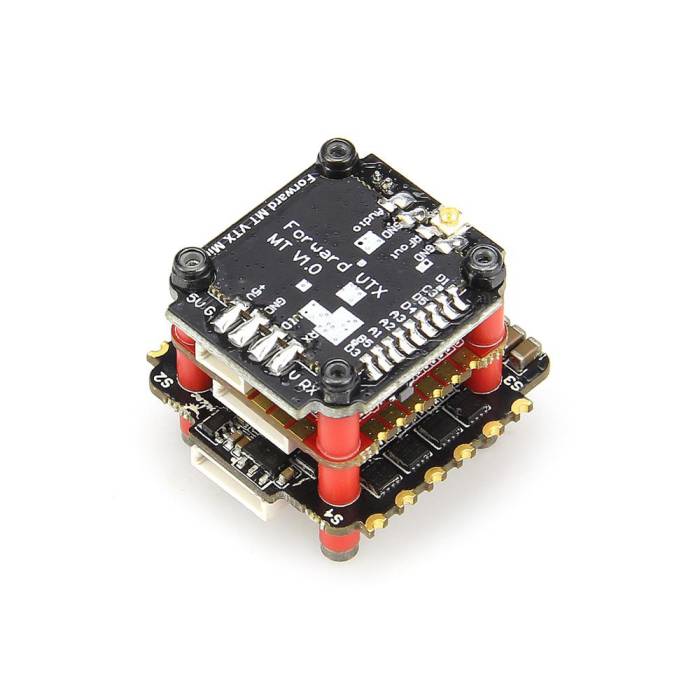

HGLRC Zeus F735 20x20 VTX Stack - F722 Flight Controller + 35A BL32 4-in-1 ESC
$72.99
Out of Stock
Only left for same day shipping. Order now!
HGLRC Zeus F735 20x20 VTX Stack - F722 Flight Controller + 35A BL32 4-in-1 ESC
The Zeus F735 VTX Mini Stack by HGLRC comes with an F7722 Mini Flight Controller, 35A BL32 3-6S 4-in-1 ESC, and MT Mini 600MW VTX.
About this product
The Zeus F735 VTX Mini Stack by HGLRC comes with an F7722 Mini Flight Controller, 35A BL32 3-6S 4-in-1 ESC, and MT Mini 600MW VTX. This stack can push 6S(35A) all while bringing you the latest features!
Specifications
- Usage: for 100mm-450mm Frame Kit
- Weight:18.4g
- Item Name: Zeus F735-VTX STACK
F722 Mini Flight Controller
- MPU: MPU6000
- CPU:STM32F722 RET6
- Input Voltage:2-6S Lipo
- Weight:3.7g
35A BL32 3-6S 4in1 ESC
- CPU:STM32F051
- Input Voltage:3-6S Lipo
- Steady Current:35A
- Peak Current:40A（10 Sec）
- Weight:6.5g
MT VTX mini 600MW
- Output power: PIT/25/100/200/400/600mW
- Input:DC 5V
- Antenna: MMCX
- Weight:3.9g
Manual
Includes
- 1 x F722 mini Flight Controller
- 1 x 35A BL32 3-6S 4in1 ESC
- 1 x MT VTX mini 600mW
More Information
| SKU | 13224 |
|---|---|
| UPC (GTIN) | 751313215659 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 35 Amps |
| Flight Controller Processor | F7 |
| Voltage | 2-6 Cell (7.4v-22.2v) |
| ESC Firmware | BLHeli_32 |
| Number of ESC's | 4 ESC's in 1 |
