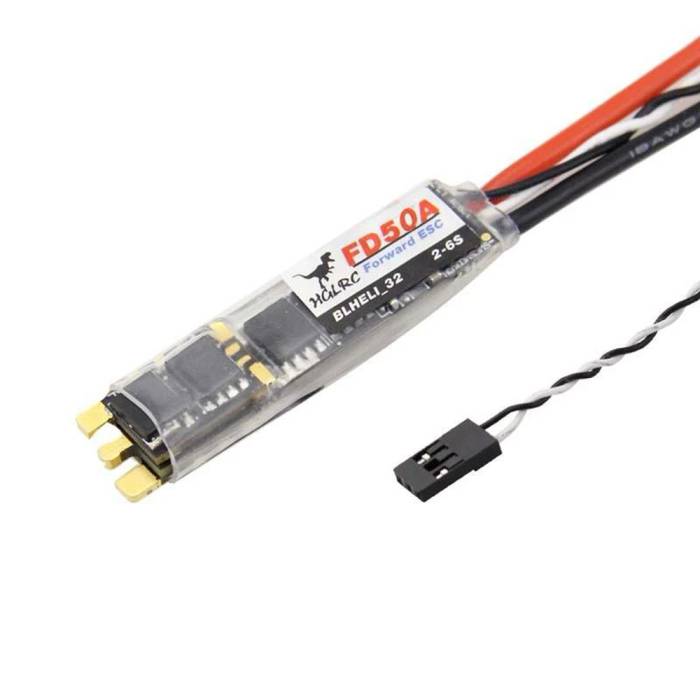

HGLRC Forward FD50A BLHeli_32 50A 2-6S Dshot 1200 ESC (1pc)
$15.99
Out of Stock
Only left for same day shipping. Order now!
HGLRC Forward FD50A BLHeli_32 50A 2-6S Dshot 1200 ESC (1pc)
The HGLRC Forward FD50A BLHeli_32 50A 2-6s Dshot 1200 ESC features a 3-layer PCB board, 3 ways of the current shunt, supports a 2-6S lipo battery, and is suitable for narrow arm drones!
About this product
The HGLRC Forward FD50A BLHeli_32 50A 2-6s Dshot 1200 ESC features a 3-layer PCB board, 3 ways of the current shunt, supports a 2-6S lipo battery, and is suitable for narrow arm drones!
Video
Features
Super overcurrent protection
- 3-layer PCB board
- 3 ways of Current Shunt
- Single circuit current only passes single layer.
- to protect the ESC board to avoid overheat and overcurrent.
- Support 2-6S Lipo battery
- Support 22xx，23xx，24xx series motor
- Suitable for Narrow arm frame Drone
- Suitable for 5-7 inches quad
- Perfect for professional FPV racing
Specifications
- Input Voltage: 2-6S Lipo battery
- Constant Current: 50A
- Peak Current: 60A
- BEC Output: NO
- Firmware: BLHELI_32
- Size: 42x10x6.4mm
- Weight: 5.2g
- CPU:STM32F051
- MOS Tube: TOP QUALITY MOSFET
- Protocol: DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot
Includes
- 1 x FD50A ESC
More Information
| SKU | 14879 |
|---|---|
| UPC (GTIN) | 789862856153 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | Single Arm ESC |
| Amps | 50 Amps |
| Voltage | 2-6 Cell (7.4v-22.2v) |
| Number of ESC's | Single ESC |
