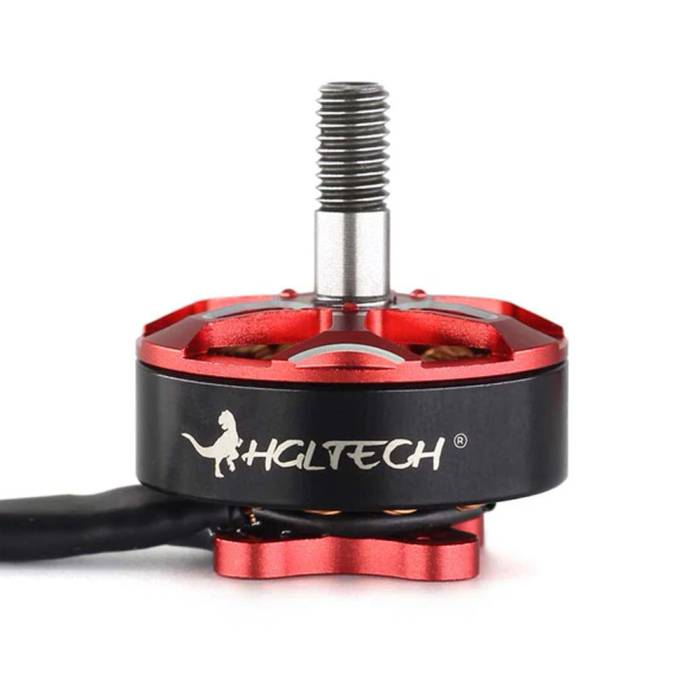

HGLRC Forward FD2306 2450KV 4S Brushless Motor

The HGLRC Forward FD2306 Motor is made of high-quality 6061 aluminum and a non-slip propeller design on the top of the bell. 2450KV is suitable for 4S power to give you a snappy throttle response. Class H 180C enameled wire is made to survive high temps, perfect for racers who push their gear to the limit!

Specifications

• Internal Resistance (mΩ): 50
• Stator Diameter:23mm
• Stator Height:6mm
• No.of Stator Slots:12S
• No.of Rotor Poles:14P
• Max Continuous Current:22.04A(60S)
• Max Continuous Power:577.3 W
• Shaft Diameter:5mm
• Overall Dimension(mm):27.9 X 30.7
• Lead Wire Size :20AWG X 150 mm
• ESC:50 A
• No.of Cells(Lipo):16.8 V (4S)
• Recommended Prop(inch): 5-6 Inch
• Weight:32g

Includes

• 1 x HGLRC Forward FD2306 2450KV Brushless Motor
