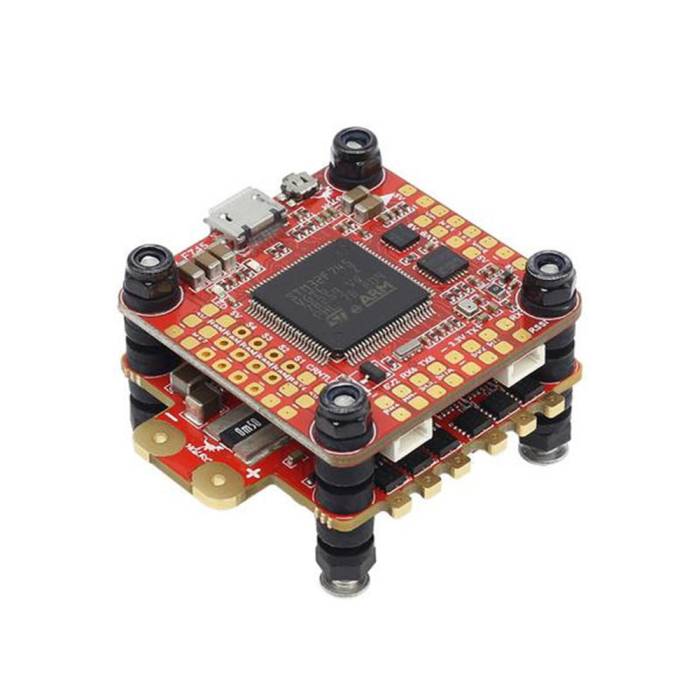

The FD F7 + 60A stack from HGLRC brings BIG power all in a 30.5x30.5 mounting size! This stack can push 6S(60A) all while bringing you the latest features! This opens up a whole new possibility of builds that can harness 6S power!

Specifications

• Item Name: HGLRC F7 FC 60A 4in1 ESC STACK
• Usage: for 180mm-1000mm Frame Kit
• Weight: 31.1g

FDF7 Dual Flight Control

• MPU: ICM20608 (32K) & MPU6000-SPI
• CPU: STM32F745VGT6, 32K+16K
• Input Voltage: 3-6S Lipo
• Built-in Betaflight OSD to adjust PID
• BEC Output: 5V@3A, [email protected]
• LED Output: 5V@3A,
• Size: 37x37mm, 30.5mm mounting holes
• Weight:10.2g

DinoShot 60A Blheli_32 3-6S 4IN1 ESC

• CPU: STM32F051
• MOS Tube: TOP QUALITY MOSFET
• Input voltage: 3-6S lipo battery
• Constant current: 60A-4S/50A-5S/40A-6S
• Peak current: 70A
• BEC ouput: NO
• Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped mode
• Size: 36x36mm (main board)
• 40x48mm (including pad)
• Installing hole: 30.5x30.5mm, M3
• Weight: 12.9g

Includes

• 1 x FD F7 Dual Flight Control
• 1 x DinoShot 60A Blheli_32 3-6S 4IN1 ESC
