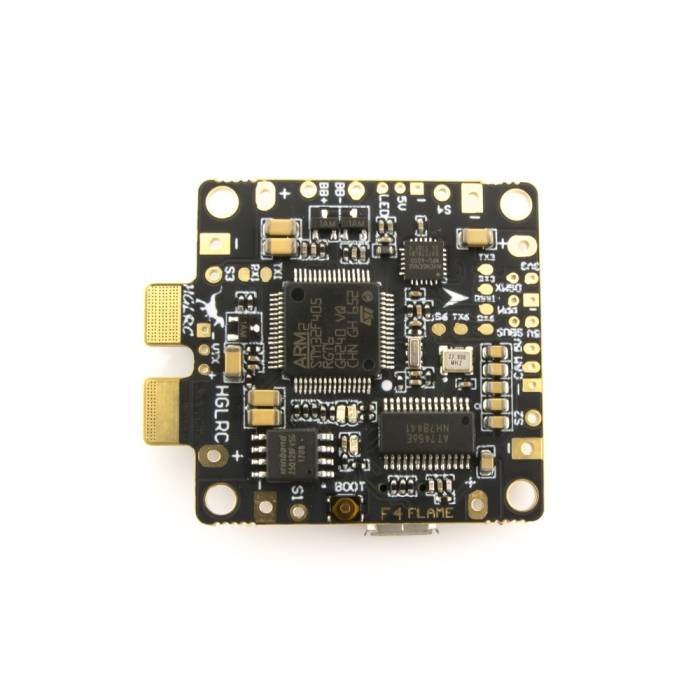

HGLRC F4 Flame Flight Controller
$44.99
Out of Stock
Only left for same day shipping. Order now!
HGLRC F4 Flame Flight Controller
The F4 FLAME Race Spec STM32F405 Flight Controller Built-in BETAFLIGHT OSD 5V BEC PDB Current Sensor.
About this product
F4 FLAME Race Spec STM32F405 Flight Controller Built-in BETAFLIGHT OSD 5V BEC PDB Current Sensor.
Features
- STM32F405 MCU, 8K
- MPU6000 SPI bus
- Built-in BETAFLIGHT OSD, PID tuning
- Built-in 5V/3A BEC
- Built-in current sensor
- Directly weld PDB
- 16M Flash
- Support receiver SBUS,PPM,DSMX...
- With buzzer, LED program, voltage monitor, BLHELI-S ESC program
- The back have 90+ CAP, prevent the counter emf of motor and make the image more clear
Specifications
- Item name: STM32F405 F4 Flight Control
- Weight: 11g
- Size: 36*36mm
- Board thickness: 1.2mm
- Copper foil: 3OZ*6Layer 18OZ
- Current: max 300A+
- Lipo: 2-6S
- Mounting hole: M3 30.5*30.5mm
Includes
- 1x F4 flight controller
More Information
| SKU | 7694 |
|---|---|
| Manufacturer | HGLRC |
| NDAA Compliant | No |
| Mounting Pattern | N/A |
| Flight Controller Processor | F4 |
