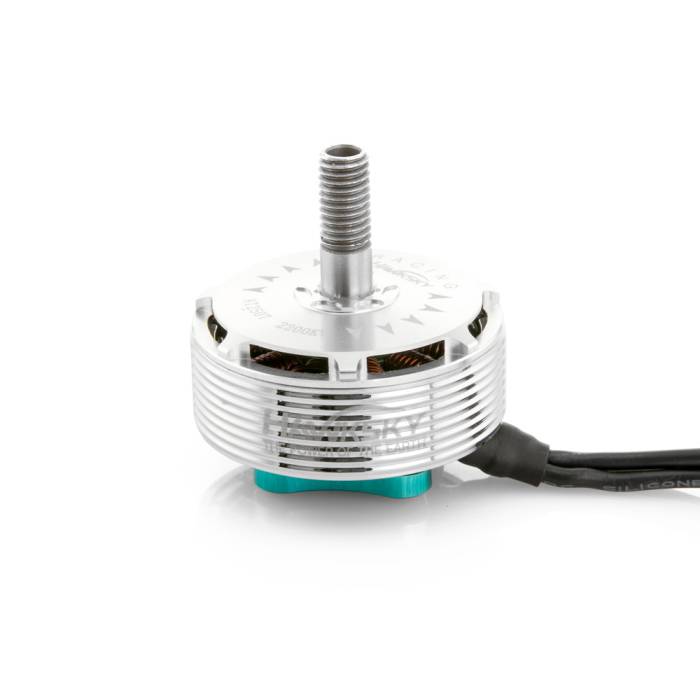

Hawksky AT2306-II 2500kv Motor

Hawksky Motors have quickly gained a solid reputation in the FPV racing scene. The first generation AT series got solid feedback from racers, but Hawksky went and improved upon them and released the AT-II series!

Features

• 7075 Aluminum End Bells
• N52SH Magnets
• 0.15 Silicon steel sheet lamination

Specifications

• Model: AT2306 Ⅱ
• Version: CW Screw Thread
• KV: 2500KV
• No.of Stator Arms: 12
• No.of Stator Poles: 14
• NO-Load Current (10V): 1.42A
• Stator Diameter: 23mm
• Stator Thickness: 6mm
• Body Length: 17.4mm
• Shaft Diameter: 5mm
• Outside Diameter: 28.5mm
• Max. Lipo Cell: 2-4S
• Motor Resistance: 40mΩ
• Weight: 32 ( with cable )

Includes

• 1x Hawksky AT2306 Ⅱ 2500kv Brushless Motor
• 1x Screw Set
