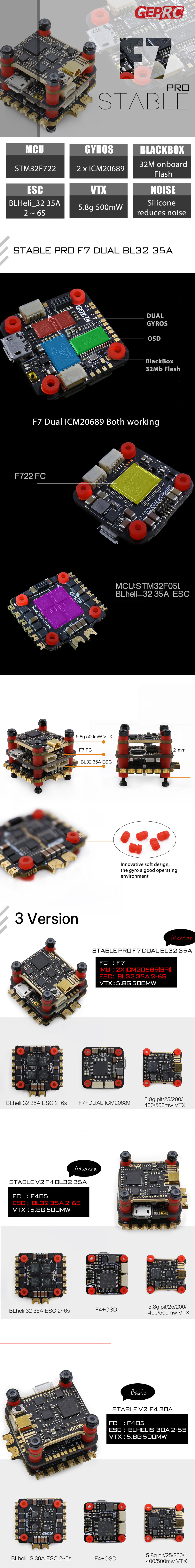

GEPRC STABLE F7 20x20 VTX Stack - PRO F7 Flight Controller + 35A BL32 4-in-1 ESC

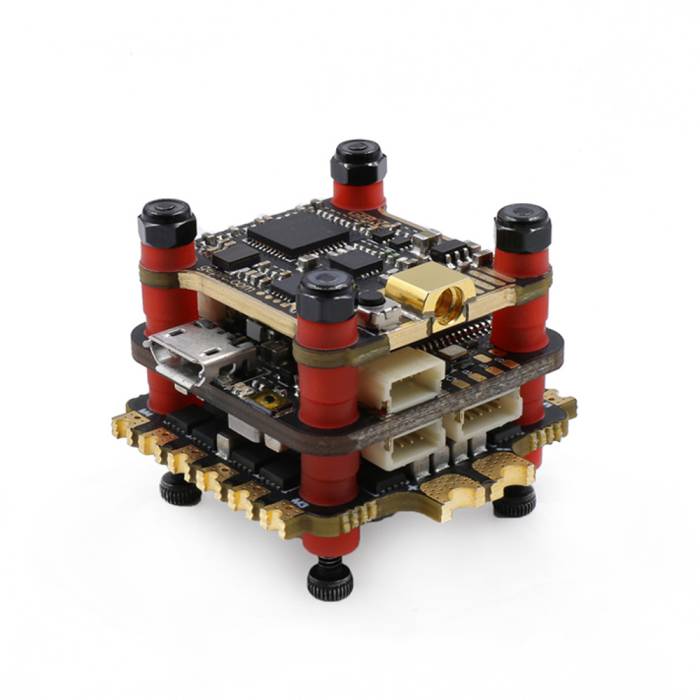

The STABLE F7 Mini Stack by GEPRC comes with a STABLE PRO F7 Flight Controller, 35A BL32 4-in-1 ESC, and STABLE F7 VTX. Features highly integrated FPV required functions, perfect clean video output, and comes with a soft damping design, to help reduce flight control, gyroscope noise, and the motor heat output.

Features

• F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience
• Innovative soft damping design, suitable for the most frame, ensures flight control and gyroscope without noise
• Simple installation method, compact space
• STM32 F405 MCU or STM32F722RET6 MCU
• Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)
• Support 2-6s battery and current meter
• Support black box and use 32M onboard flash storage
• 8g VTX Support IRC protocol, PIT/ 25/100/200/500mw adjustable, 48 frequency
• Mounting Holes: 20x20mm(M2)
• Size: 26x26x21mm
• Weight 16.5g (Including Wire and screws)

Specifications

STABLE PRO F7 Flight Controller

• Model:STABLE PRO F7 35A
• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• BlackBox: 32Mb onboard Flash
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• BEC Output: 5V@3A
• Integrated LC Filter
• Input Voltage: 2-6S Lipo
• Firmware target: EXF722DUAL
• Size: 26x26mm board, 20mm mounting holes (M2)

STABLE PRO F7BL32 2-6S 4-in-1 ESC

• MCU:STM32F051
• Input:2-6s lipo
• Constant:35Amps
• Burst:45Amps
• Dimensions:31*31mm(including the power pads)
• Mounting Holes:20*20mm, M2
• Supports Dshot1200, Proshot,Oneshot, Multishot
• Current meter: Yes
• Target: GEPRC-BL32-4IN1

STABLE PRO F7 5.8g 500mW VTX

• Input voltage: 5V
• Channel: 48
• Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
• Size: 24 * 26 mm
• Mounting Holes Dimension: 20mm x 20mm
• Connector type: MMCX Connector
• BEC Output：5V/1A for Camera of FC
• Weight: 2.3g
• Traditional button
• IRC Tramp protocol

Manual

Includes

• 1 x F7 Flight Controller
• 1 x BLheli_32 35A 2-6S ESC
• 1 x 5.8g 500mW VTX
• 1 x Capacitance
