GEPRC GEP-M8Q GPS + GLONASS Module

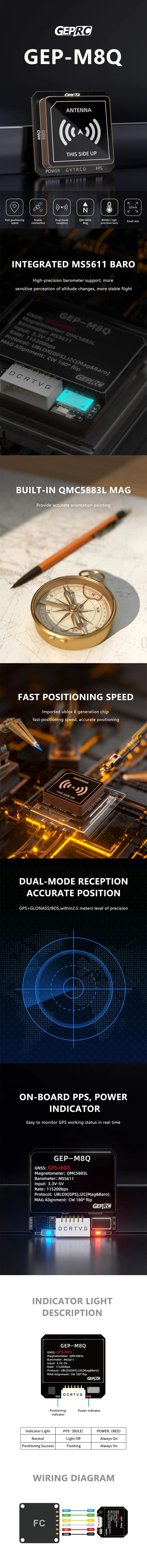

The GEPRC GEP-M8Q GPS + GLONASS Module features a compact design, fast positioning, stable connection and is easy to use. The right circularly polarized patch antenna provides excellent reception capability. Built-in QMC5883L high-precision magnetometer provides accurate azimuth pointing. Integrated MS5611 high precision barometer, subtle altitude changes are not to be missed, more stable flight. Ideal for use on FPV drones, multi-rotor, fixed-wing and other model products.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• On-board PPS positioning and power indicator, easy to use
• SH1.0-6Pin terminal design, no soldering required
• QMC5883L Magnetometer chip, Precise pointing
• Integration MS5611 High precision barometer
• Unique appearance design
• Small size and light-weight
• Fast positioning speed
• Stable connection




USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Receiving Format: GPS, GLONASS，BDS (Choose GLONASS or BDS)
• Dynamic Characteristics: Max Height: 50000m, Max Speed: 500m/s
• Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
• Communication Protocol: UBLOX(GPS)、I2C(Mag&Baro)
• Receiving Sensitivity: Trace -162dBm, Capture-160dBm
• MAG Alignment: CW 180° flip
• Size: 22mm x 22mm x 8.5mm
• Output Connector: SH1.0-6P
• Speed Accuracy: 0.05 m / s
• Output Frequency: 10Hz
• Timing Accuracy: 30 ns
• Baud Rate: 115200bps
• Input Voltage: 3.3V-5V
• Compass: QMC5883L
• Barometer: MS5611
• Max Acceleration: 4G
• Channel: 72ch
• Weight: 8g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x GEPRC GEP-M8Q GPS + GLONASS Module
• 1 x GEP-M8Q GPS user manual
• 1 x SH1.0-6Pin terminal cable
• 1 x GEP-M8Q GPS module
• 2 x Heat shrink tube
• 1 x GEPRC Sticker
