GEPRC G50A BL32 3-6S 4-in-1 ESC
$72.99
Out of Stock
Only left for same day shipping. Order now!

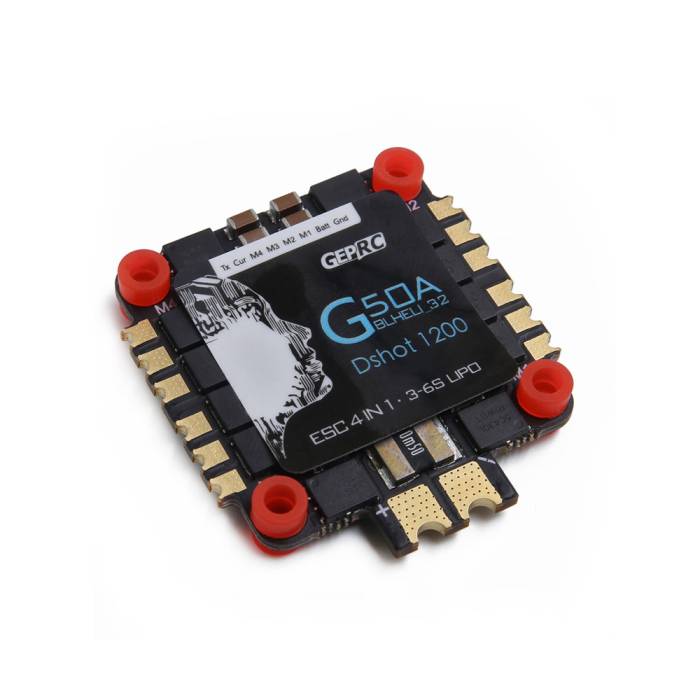

GEPRC G50A BL32 3-6S 4-in-1 ESC
The GEPRC G50A 4-in-1 ESC brings serious power to the 30.5x30.5 game. 3-6S capable and stackable with other mini FC's.
About this product
The GEPRC G50A 4-in-1 ESC brings serious power to the 30.5x30.5 game. 3-6S capable and stackable with other mini FC's. This ESC supports DSHOT1200/DSHOT600, PWM, Multishot, OneShot. Great specs in a tiny package!
Features
- Copper thickness:4OZ*4(Power Layer）+2OZ*2
- MCU: STM32FO51K86(32bit 48mHz)
- TDK ceramic capacitors
- Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
- Continuous Current: 50A
- Reasonable layout, Easy installation
Specifications
- Model: GEP-BL32-G50A-4IN1-ESC
- MCU: STM32FO51K86(32bit 48mHz)
- Continuous Current: 50A
- Peak Current: 55A (5S)
- BEC: NO
- Current sensor: YES
- Telemetry：Supported
- Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
- Firmware Version: GEPRC-BL32-4IN1
- Size: 43x40mm board, φ4mm with Grommets φ3mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Input Voltage: 3-6S Lipo
- Weight:14.5g
BLHeliSuite download
Includes
- 1 x GEP-BL32-G50A-4IN1-ESC
- 1 x 8pin cable
- 1 x 35v 220uf Capacitor
- 1 x XT60 Lead
- 4 x Silicon grommets M4 to M3
More Information
| SKU | 11536 |
|---|---|
| UPC (GTIN) | 032733837417 |
| Manufacturer | GEPRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 50 Amps |
| Voltage | 3-6 Cell (11.1v-22.2v) |
| Number of ESC's | 4 ESC's in 1 |
