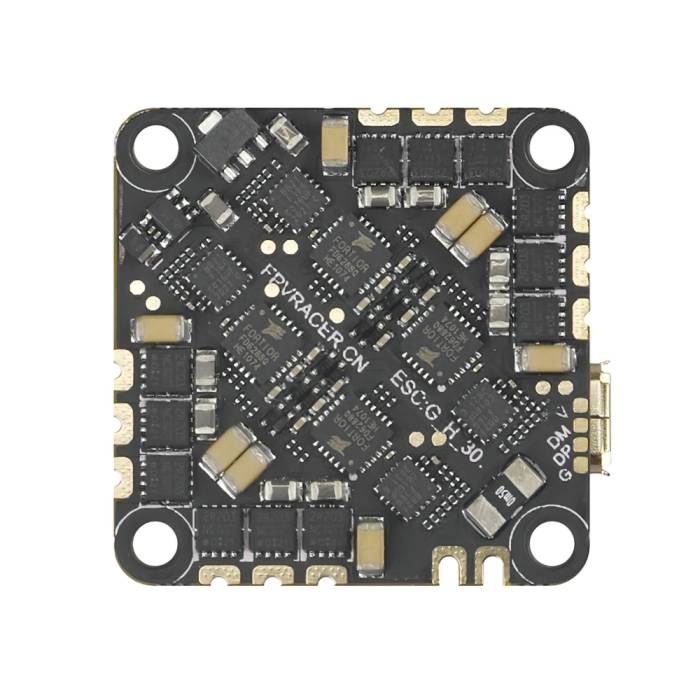

FPVRacer MR26 F411E 25A 3-4S AIO Flight Controller + ESC
LDARC has teamed up with FPVRacer to present the FPVRacer MR26 F411E AIO Flight Controller + ESC. This is a 25A 2-4s FC with a g_H_30 ESC... a great option for all of your FPV needs!
About this product
LDARC has teamed up with FPVRacer to present the FPVRacer MR26 F411E AIO Flight Controller + ESC. This is a 25A 2-4s FC with a g_H_30 ESC... a great option for all of your FPV needs!
Specifications
- MCU: STM32F411CE / 100mHz / 512KB Flash / 128KB RAM
- FC Amperage Meter: Scale 100/ Offset 0
- Current: 25A Continuously / 30A Paused
- Bec: MP9943 / 3A / 36V / Synchronous
- Mounting Size: 26.5mmx26.5mm
- PCB Size: 32.5mmx32.5mm
- FC Target: LDARCF411
- External USB Pad: Yes
- Gyro: MPU6000 / SPI
- ESC target: g_H_30
- Mosfet: TPN 2R203
- Voltage: 3-4s Lipo
- Buzzer Pad: Yes
- OSD: AT7456E
- LED Pad: Yes
- UARTS: 2
Includes
- 1x FPVRacer MR26 F411E 25A 3-4S AIO Flight Controller + ESC
More Information
| SKU | 16286 |
|---|---|
| UPC (GTIN) | 736952007391 |
| Manufacturer | FPVRacer |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 25 Amps |
| Flight Controller Processor | F4 |
| Voltage | 3-4 Cell (11.1v-14.8v) |
| Number of ESC's | 4 ESC's in 1 |
