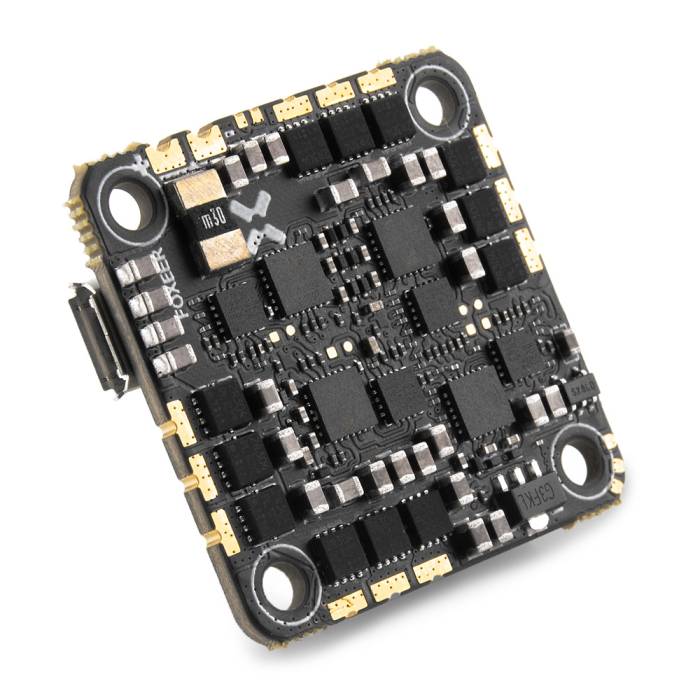

Foxeer Reaper F745 AIO - F7 FC + 45A 2-6S BLHeli_S ESC

The Foxeer Reaper F745 AIO is an all-in-one board with an F7 flight controller and 45A ESC, featuring an STM32F745 High-performance processor and 16M BlackBox.

VIDEO: Foxeer Reaper F745 AIO FCB

Features

• STM32F745 High-performance Processor
• BLHeli_S 4-in-1 ESC
• 16M Blackbox
• MPU6000 Gyro
• 5 Set UARTs

Specifications

• Continuous /Burst Current: 45A x 4/ 50A x 4
• Mounting Hole: 25.5X25.5mm,Φ3mm/M2
• Power Supply: 2~6S Lipo(8.4~25.2V)
• Working Temperature: -20℃ ~ +55℃
• Storage Temperature: -20℃ ~ +70℃
• Input Voltage: 2~6S Lipo(8.4~25.2V)
• DJI Connector: Supported, 8pin
• Black Box: 16M Flash Memory
• Stick Programming: Supported
• Fireware: FOXEERF745_AIO
• Model: FOXEER Reaper AIO
• ESC Programming: BLHeli-S
• Working Humidity: 20～95%
• Firmware: G-H-30 BLS 16.7
• Current sensor: Supported
• Input signal: Dshot300/600
• BEC Output: C5V/2.5A
• Size: 32.5X32.5mm
• Current scale: 100
• CPU: STM32F745
• USB: Micro USB
• Weight(g): 8.6g
• OSD: BF OSD
• Telemetry: No
• UART: 5 Set

Includes

• 1x Foxeer Reaper F745 AIO - F7 FC + 45A 2-6S BLHeli_S ESC
