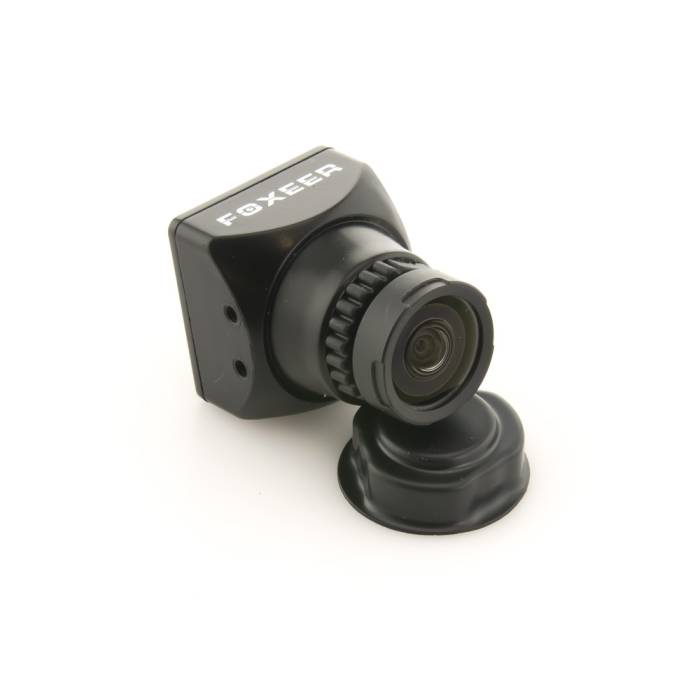

Foxeer Arrow Mini HS1200 FPV Camera Black

The Foxeer Mini FPV Camera is an excellent choice for pilots looking to have a high image quality output for FPV use on their next micro builds, or for standard sized drones that are going on a weight diet. The Arrow mini FPV camera is an all up weight of only 9.5g, and measures 21x21x20mm, has a wide input voltage of 5v-40v, and lastly features a powerful built in OSD with preset modes.

Specifications

• Image Sensor: 1/3” Sony SUPER HAD II CCD + Nextchip 2040 DSP
• Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
• TV System: PAL/NTSC(according to country)
• Resolution: 650TVL(b/w), 600tvl(color)
• Synchronization: internal synchronize
• Min. Illumination: 0.01Lux
• DNR: 2DNR
• WDR: Yes
• Menu (OSD): English menu
• White Dot Repair: Support
• Image Adjustment: Support
• Camera Title: Support
• Power Requirement: DC5-40V
• Working Temperature: -10 C ~ 50 C
• Working Humidity: 20~80%
• Storage Temperature: -40 C ~ 60 C
• Storage Humidity: 20~95%
• Dimensions (mm): 21x21x20
• Power Consumption: 70mA

Includes

• 1x Foxeer Arrow Mini HS1200 FPV Camera
• 1x Manual
• 1x OSD board
• 1x Servo cable
• 1x Bracket
