Flywoo GOKU Versatile F405 Pro Stack - F405 Pro FC + 50A BLHeli_S 2-6S 4-in-1 ESC- 30x30
Out of Stock
About this product

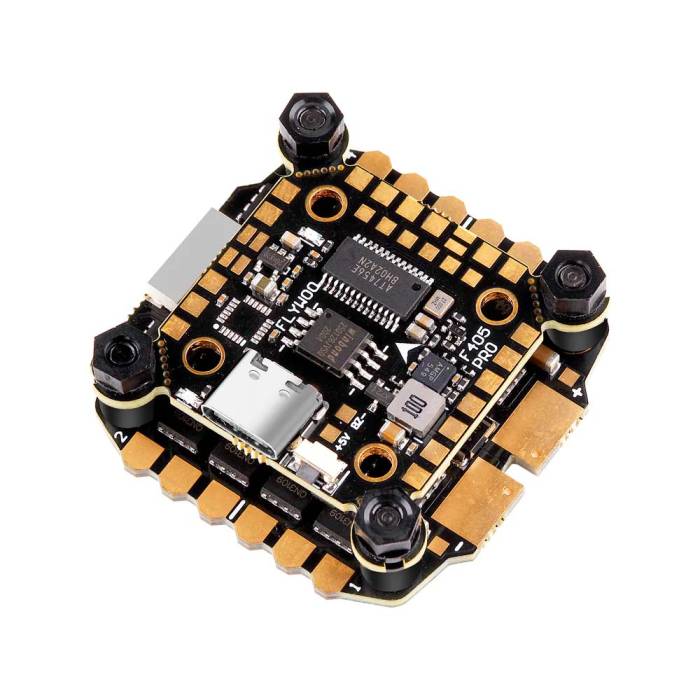

The Flywoo GOKU Versatile F405 Pro Stack uses the GOKU Versatile F405 PRO FC, which is a powerful flight control that is equipped with the smallest but most powerful F405 BGA Chipsets instead of ordinary QFP (Big Size) MCUs. The Flywoo GOKU Versatile F405 Pro Stack is perfect for any 30.5 x30.5 build and is compatible with both analog FPV and HD! This stack features a DJI Plug&Play plug, many UARTs, an onboard Barometer for possible long-range flights, and so much more!
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- 8 layers double-sided PCB board ESC
- The FC has a super bid pad, very easy to solder everything
- Including a barometer, BlackBox, 6 complete hardware serial ports, I2C functionality, Dual BEC 5V 2A / 10V 2A
- Universal USB Type C connector instead of micro USB
- Support Betaflight \ INAV \ Autopilot
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
GOKU Versatile F405 PRO FC
- MCU: STM32F405BGA
- GYRO: ICM42688P
- UARTS: 1/2/3/4/5/6
- I2C: SCL/SDA
- Barometer: BMP280
- BEC: 5V 2A / 10V 2A
- Blackbox: 16M
- Input Voltage: 2-6S
- Firmware: FLYWOOF405PRO
- Mounting: 20x20mm M3 / 30x30mm M4
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- LED Controller: BF LED
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 2~6S Lipo (8.4~25.2V)
- TVS Protection: Yes
GOKU 506S 8bit 50A ESC
- Con. Current: 50A
- Burst Current: 55A ( 10 Seconds)
- Input Voltage: 2-6S
- Firmware: BLheli_S
- Support DShot300/600
- Current Sensor: YES
- BEC Output: NO
- Size: 42×42×4mm
- Mounting Hole: 30.5x30.5mm ( M3)
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo GOKU Versatile F405 Pro Stack - F405 Pro FC + 50A BLHeli_S 2-6S 4-in-1 ESC- 30x30
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19788 |
|---|---|
| UPC (GTIN) | 724376346066 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 50 Amps |
| Flight Controller Processor | F4 |
| Voltage | 2-6 Cell (7.4v-22.2v) |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
