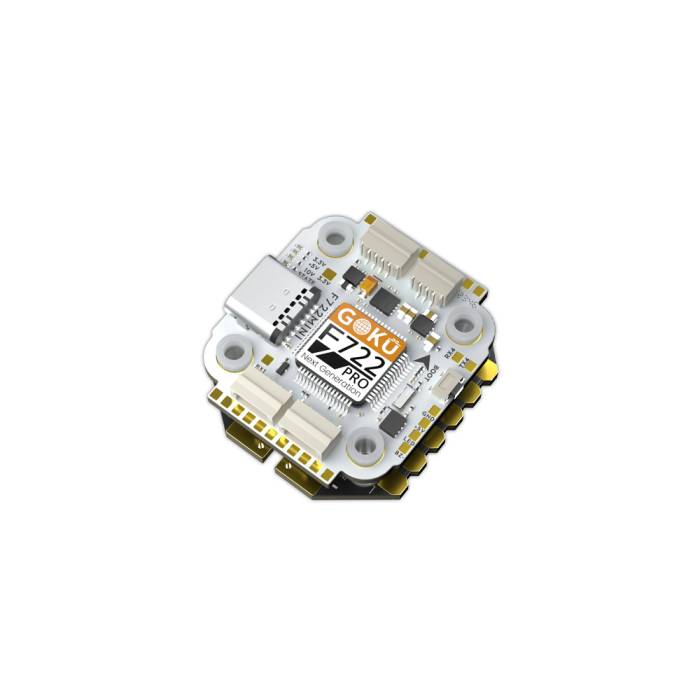

Flywoo GOKU Mini Stack - F722 FC (ICM42688) + 40A 2-6S ESC - 20x20
Out of Stock
About this product
The new GOKU Pro V2 F722 40A BLS Mini Stack from FLYWOO offers a compact size, high-performance main control, and multiple motor outputs. Its user-friendly socket design simplifies device connections, enhancing installation efficiency and maintenance convenience. Additionally, it retains solder pads for flexible device connection options. It features a plug-and-play function tailored for DJI O3 Air Unit integration, making it ideal for pilots seeking streamlined builds with advanced digital transmission systems.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Flywoo GOKU F722 Pro Stacks - They Thought Of Everything
Features
- High-performance processor
- Large-capacity black box
- Multiple motor outputs
- Stable current output
- Modular installation
- Precision gyroscope
- Durable design
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
FLIGHT CONTROLLER
- BF Flight Controller Firmware: FLYWOO F722PRO
- Flight Controller Size: 32mmx29mmx20mm
- Product Name: GOKU F722PRO Stack
- INAV Firmware: FLYWOO F722PRO
- Mounting Holes: M2 20x20mm
- Gyroscope: ICM42688
- BEC: 10V/2A, 5V/2A
- UARTs: 1/2/3/4/5/6
- MCU: STM32F722
- Barometer: DP310
- Black Box: 16MB
- OSD: AT7456E
- Weight: 9.9g
ESC
- Mounting Hole: 20x20mm (M3)
- Support DShot: 300/600
- Current Sensor: YES
- Input Voltage: 2-6S
- Burst Current: 45A
- Con. Current: 40A
- Size: 42x42x4mm
- BEC Output: NO
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo GOKU Mini Stack - F722 FC (ICM42688) + 40A 2-6S ESC - 20x20
- 1x FC & ESC Connection Cable
- 1x Receiver Connection Cable
- 1x Camera Connection Cable
- 1x Buzzer Connection Cable
- 5x M3 Shock-Absorbing Ball
- 5x M2 Shock-Absorbing Ball
- 1x DJI O3 Connection Cable
- 1x GPS Connection Cable
Featured Videos
FLYWOO GOKU F722 PRO FLIGHT CONTROLLER STACKS - ARE THEY GOOD?
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 21829 |
|---|---|
| UPC (GTIN) | 724376360437 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 40 Amps |
| Flight Controller Processor | F7 |
| Voltage | 2-6S |
| ESC Firmware | BLHeli_S |
| Number of ESC's | 4 ESC's in 1 |
