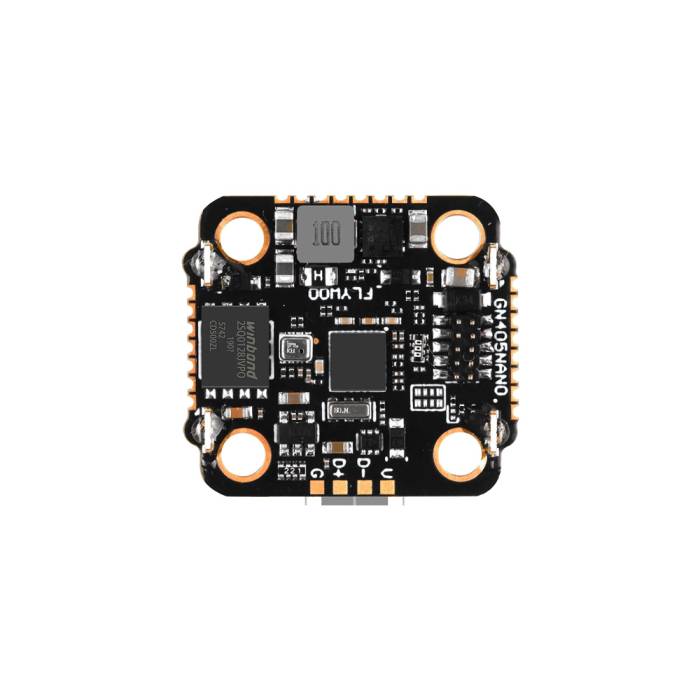

Flywoo GOKU HEX GN405 Nano Flight Controller (ICM42688) - 16x16

The Flywoo GOKU HEX GN405 Nano Flight Controller with ICM42688 sensor and a 16x16 mounting pattern is a compact yet incredibly powerful Flight Controller designed for advanced FPV flying. This flight controller is a part of Flywoo’s esteemed GOKU series, recognized for its exceptional performance and reliability.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Features the F405 BGA MCU, ensuring reliable performance and fast processing speeds.
• Integrated with a barometer for altitude measurements.
• Equipped with a 5V 2A BEC, providing stable power supply to connected devices.
• Comes with a 16MB Black Box for flight data logging.
• Boasts 6 complete hardware serial ports (UARTs), offering extensive connectivity options.
• I2C functionality included for additional sensor and accessory connections.
• WS2812 LEDs located on each corner, adding low profile lighting and enhancing the visual appeal of your setup.
• Designed for pin mounting to the Goku HEX BS13A 4in1 16x16 ESCs, but also offers pad soldering options for versatility in setup.
• Programmable LEDs allow for customization and easy visibility during flight.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• MCU: STM32F405 BGA
• IMU: ICM42688/BMI270 (SPI)
• Barometer: SPL06
• input voltage ： 2-6S
• Onboard LED：WS2812*4
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 16Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 22x22mm
• Mounting Holes: Standard 16/16mm square to center of holes
• Weight: 2.3g
• Firmware : FLYWOOF405NANO

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Flywoo GOKU HEX GN405 Nano Flight Controller (ICM42688) - 16x16
