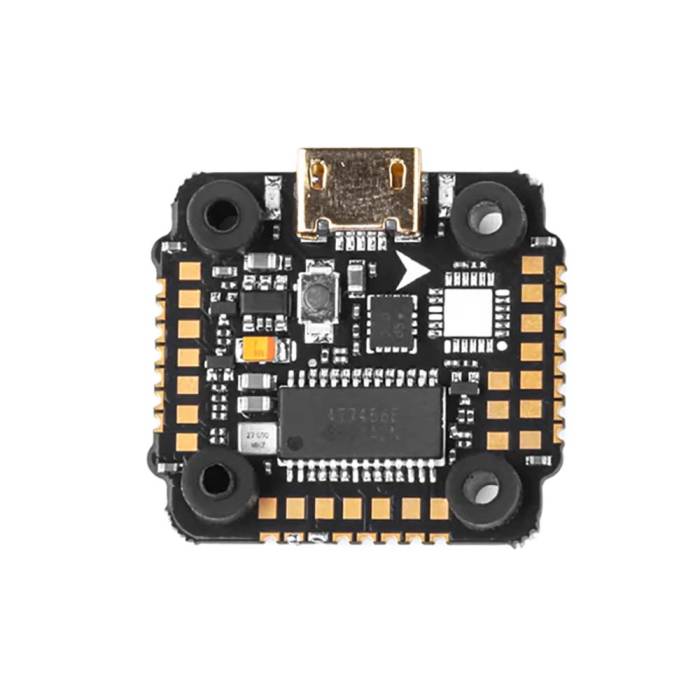

Flywoo GOKU HEX GN405 Nano Flight Controller - 16x16 - MPU6000

The Flywoo GOKU HEX GN405 Nano Flight Controller is small but powerful. The nano flight controller features a barometer, 16MB BlackBox, 6 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner. It is specifically designed to be pin mounted to the Goku BS13A / 35A 4in1 16x16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provides low-profile lighting for this tiny FC.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Black Box 16MB
• F405 BGA MCU
• WS2812LED
• 5V 2A BEC
• Barometer
• 6 UARTS



USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• Mounting Holes: Standard 16/16mm square to center of holes
• PPM and PWM receivers are not supported.
• Onboard 16Mbytes for Blackbox logging
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Firmware: FLYWOOF405NANO
• IMU: BMI270 (SPI) \ MPU6000
• 3.3V Power Out: 0.5A max
• Onboard LED: WS2812*4
• 5V Power Out: 2.0A max
• Dimensions: 22x22mm
• MCU: STM32F405 BGA
• Barometer: BMP280
• input voltage: 2-6S
• Weight: 2.3g



IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Flywoo GOKU HEX GN405 Nano Flight Controller
