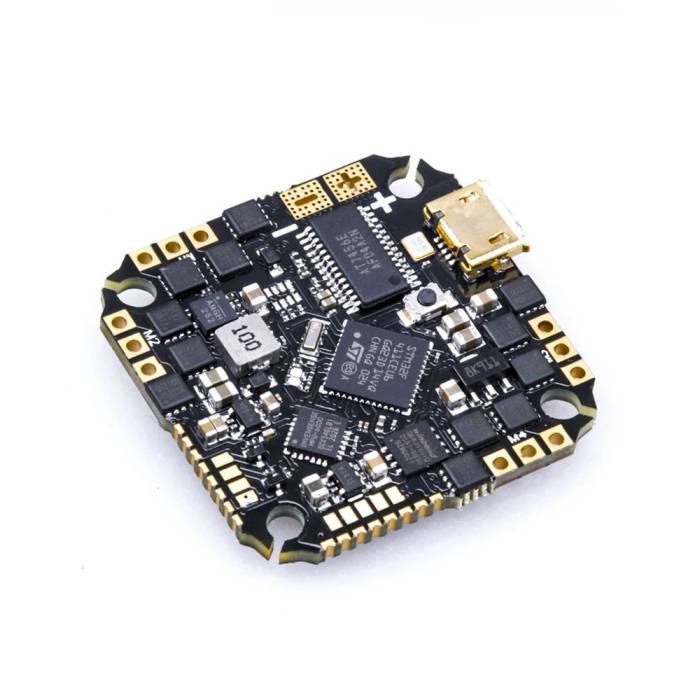

Flywoo GOKU GN4 F4 20A 2-6S BLHeli32 AIO Flight Controller

The FLYWOO new top GOKU series AIO is finally here! The GOKU GNF411 20A FC is an economical and durable all-in-one (AIO) FC that features STM32F411 MCU, MPU6000 (SPI) IMU, 2 hardware UARTS, and much more to meet your FPV needs!

Specifications

GN411AIO BLHELI_32 20A

• MCU: STM32F411
• IMU: MPU6000 (SPI)
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 2 hardware UARTS (UART1,2)
• 2 Software serial port/Support ESC telemetry
• Onboard LED：WS2812*4
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onboard 8Mbytes for Blackbox logging
• 9V Power Out: 1.5A max
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 33.5x33.5mm
• Mounting Holes: Standard 25.5/26.5mm square to the center of holes
• Weight: 8.5g

Built-in 20A/40A BL_32 4in1 ESC

• Support BLheli / BLHELI_32
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
• Input Voltage: 2-6S Lipo
• Continuous Current: 40A
• Firmware: BLHELI_32

Recommended (Not Included)

• VTX : GOKU HM600 600MW VTX

Diagram

Includes

• 1 x Flywoo GNF411 F4 20A AIO BLHeli32 Flight Controller
