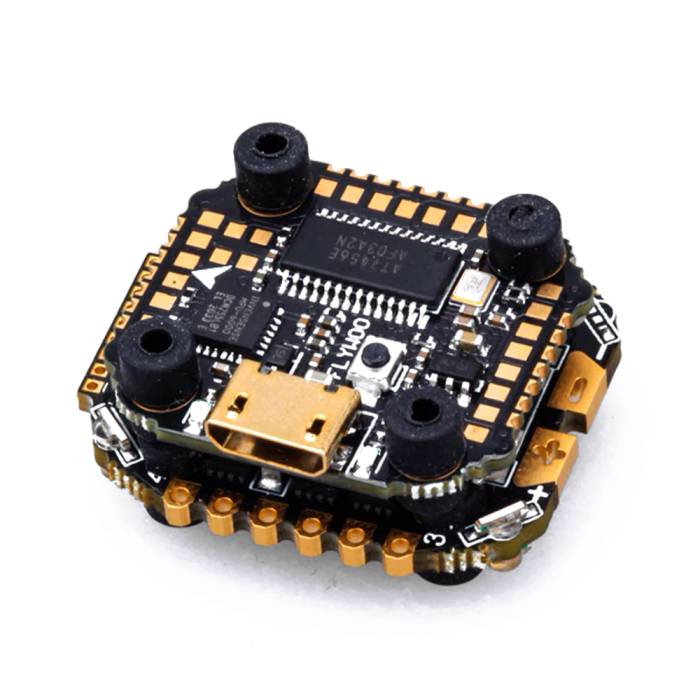

Flywoo GOKU F745 + 35A 2-6S ESC 16x16 Stack

Out of Stock

Only left for same day shipping. Order now!
bell Notify me when this product is in stock
Flywoo GOKU F745 + 35A 2-6S ESC 16x16 Stack
The Flywoo GOKU F745 FC combined with the GOKU BS35A 4-in-1 ESC brings lots to the table for your micro long-range build!
Share

About this product

This stack features a powerful F745 flight controller packed with features including a barometer, black box, 7 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner.

The accompanying ESC is a 4in1 ESC with 35A of continuous current, plenty of juice to power 4-5" LR builds.

This feature-packed stack is sure to cover all the bases when it comes to micro long-range builds.

Specifications

GOKU F745 16X16 FC

  • SIZE: 22*23mm Weight: 2.3g
  • Hole: 16*16-3mm
  • MCU: STM32F745
  • UARTS: 1/2/3/4/5/6/7
  • I2C: SCL/SDA
  • GYRO: MPU6000
  • BARO: BMP280 BEC: 5V 2A
  • LED:4*WS2812 FLASH: 8M
  • Input Voltage: 2-4S
  • Firmware: FLYWOOF745NANO
BS35A BLheli_S 2-6S 4in1
  • Weight: 2.5g
  • Continuous Current: 35A
  • Firmware: BLHeli_S
  • Mounting Hole: 16x16mm (M3)
    - Support Oneshot, Multishot,  DShot150/300/600

Includes

  • 1x GOKU F745 16X16 FC
  • 1x BS35A BLheli_S 2-6S 4in1 ESC
  • 4x M2 19mm Bolts
  • 4x M2 Nuts
  • 8x Spacers
  • 1x Capacitor
  • 1x Flywoo Sticker
  • 1x Connecting Wire


More Information

SKU 15549
UPC (GTIN) 789862859161
Manufacturer Flywoo
Country of Manufacture China
NDAA Compliant No
Mounting Pattern 16x16mm
Amps 35 Amps
Flight Controller Processor F7
Voltage 2-6 Cell (7.4v-22.2v)
ESC Firmware BLHeli_S
Number of ESC's 4 ESC's in 1
