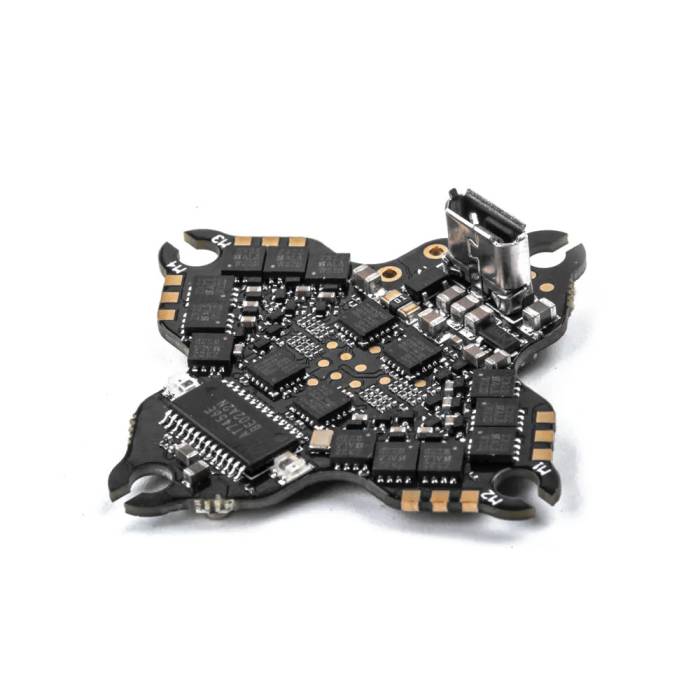

Flywoo GOKU F405 AIO - F405 FC + 12A BLHeli_S 1-2S ESC w/ ELRS 2.4GHz Rx (MPU6000)
Out of Stock
About this product
The Flywoo GOKU F405 AIO FC is another versatile and highly integrated circuit board in the GOKU series! This AIO features a built-in ELRS 2.4g RX, 2S 12A ESC, OSD, 6 serial ports I2C functionality, and 2XWS2812 LEDs. Building made easy in a compact whoop board! This AIO features an MPU6000 Gyroscope.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Build-in ELRS 2.4g RX (Full UART1) , 2S 12A ESC, OSD
- Configured with the powerful F405 BGA MCU
- Can work with different RX at the same time
- Opened 6 serial ports and 12C functionality
- Reasonable layout, easy to build
- Black box \ Barometer \ CURR
- Built-in 2XWS2812 LEDs
- MPU6000 Gyroscope
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
FLIGHT CONTROLLER
- MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
- Firmware: FLYWOOF405S_AIO
- Hole: 25.5*25.5-3mm
- Barometer: BMP280
- UARTS: 1,2,3,4,5,6
- MCU: STM32F405
- GYRO: MPU6000
- LED:2*WS2812
- SIZE: 30*30mm
- Weight: 4.1g
- BEC: 5V 2A
- Flash: 8M
ONBOARD 4-in-1 ESC
- Support Oneshot125, Oneshot42, Multishot,
- Built-in 1S/2S 12A BL_S 4in1 ESC
- Dshot150, Dshot300, Dshot600
- Firmware: Z_H_30_REV16.7
- Input Voltage: 2S Lipo
- Firmware: BLHELI_S
ELRS 2.4GHZ RX
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- Firmware: Flywoo EL24P 2400 RX
- SX1280IMLTRT RF Module
- ESP8285 MCU
- Version: 2.X.X
- UART: 1
IMPORTANT NOTES
- When using 1S battery, please set: FC Motor ldle=12; ESC Startup Power =1
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Flywoo GOKU F405 AIO - F405 FC + 12A BLHeli_S 1-2S ESC w/ ELRS 2.4GHz Rx (MPU6000)
- 1x Amass XT3OU-M Connector
- 1x 25v 220w Capacitor
- 1x Receiver Antenna
- 1x Connecting Wire
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 20405 |
|---|---|
| UPC (GTIN) | 724376349418 |
| Manufacturer | Flywoo |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 12 Amps |
| Flight Controller Processor | F4 |
| Voltage | 1-2 Cell (3.7v-7.4v) |
| Number of ESC's | 4 ESC's in 1 |
