DYS BE1104 7500kv Micro Brushless Motor

Out of Stock

Only left for same day shipping. Order now!
bell Notify me when this product is in stock

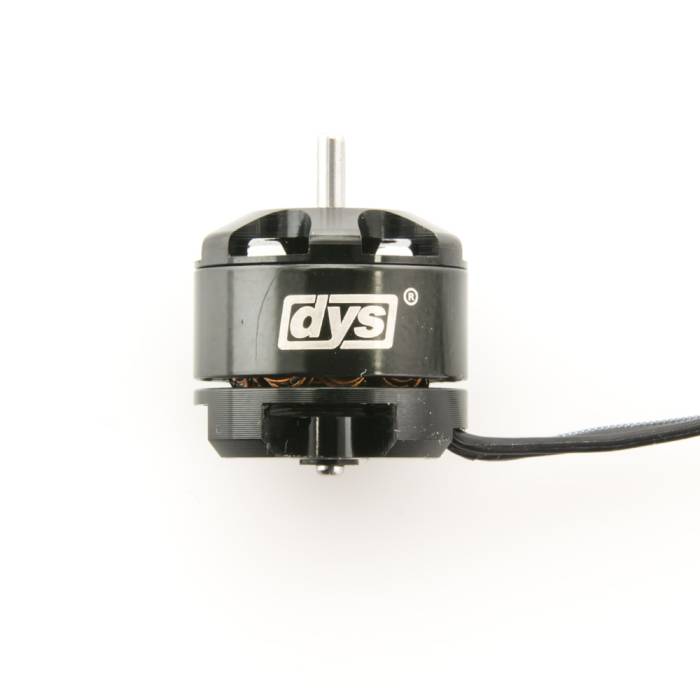

DYS BE1104 7500kv Micro Brushless Motor
The DYS BE series of motors are a balance of quality, performance and price. All BE motors come with integrated one piece CNC motor housing and prop shaft making for a light, strong and compact design.
Share

About this product

DYS BE1104 Micro Brushless Motors come with mini size and high KV rating (available in 4000kv, 6500Kv or 7500Kv) , they are specially designed for micro multirotors that in a size of 100mm-150mm. These micro motors are designed to survive even the hardest of crashes, allowing you to stay in the air longer and have less replacement costs.

Specificastions

  • KV: 7500
  • Configuration: NP
  • Stator Diameter: 11mm
  • Stator Length: 5mm
  • Shaft Diameter: 1.5mm
  • Motor Dimensions(Dia.*Len): Φ14×12.5mm
  • Weight(g): 6g
  • No.of Cells(Lipo): 2-3S
  • Max Continuous current(A): 11.8A
  • Max Continuous Power(W): 131W
  • Internal resistance: 0.19Ω
  NO LOAD ON LOAD LOAD TYPE
VOLTAGE CURRENT CURRENT Pull Power EEP Battery/prop
V A A g W %
7.4 0.5 1.7 50 12.6 4.0 LiPox2/3020R
4.5 100 33.3 3.0
8.5 160 62.9 2.5
11.1 0.6 2.3 70 25.5 2.7 LiPox3/3020R
5.4 140 59.9 2.3
11.8 220 131.0 1.7

Includes

  • 1 Motor
  • Prop Mounting Hardware
  • Motor Mounting Hardware


More Information

SKU 7128
UPC (GTIN) 767520220041
Manufacturer DYS
Country of Manufacture China
NDAA Compliant No
Motor Stator Size 1104
Popo Compatible No
