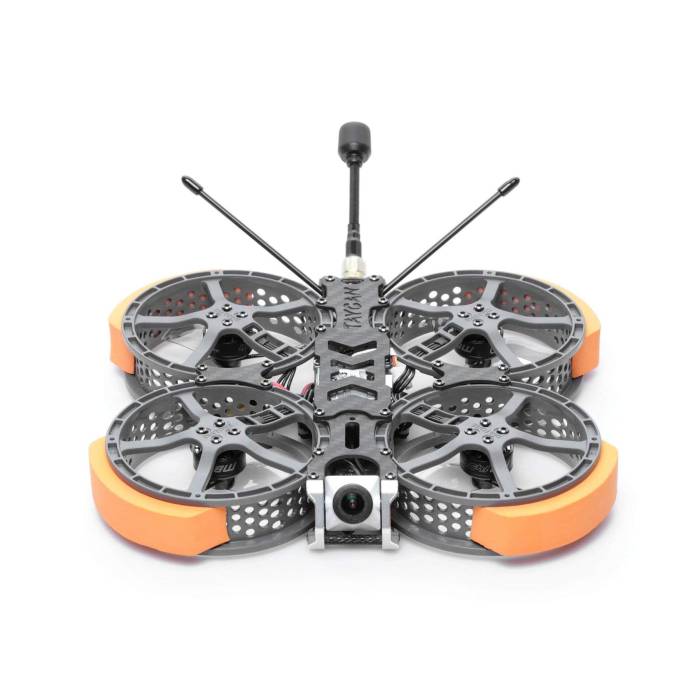

Diatone MXC Taycan 25 2.5" 4S Cinewhoop w/ Caddx Nebula Pro

The Diatone MXC Taycan 25 is a ducted 2.5" Cinewhoop that comes with the Caddx Nebula Pro System. This pusher-style Cinewhoop is excellent for flying in tight spots while getting stable and clear HD footage with the new and improved Caddx Nebula Pro - or with the addition of an action camera on top. (not included)

Made sturdy by aluminum alloy 7075 and T300 3K carbon fiber, this ducted cinewhoop is built to stand up to abuse. PNP with the DJI system, or add your own receiver to fly whichever protocol you would like.

Note: Does NOT include goggles, batteries, or charger.

Specifications

• Camera: Caddx Nebula Pro
• Antenna: Mamba
• VTX: Caddx Vista
• FC/ESC: MAMBA F411 25A AIO 25.5mm
• Motor: MAMBA Racing 1404 5000KV
• Weight: 185g

Mamba F411 25A AIO

• STM32F411
• Input voltage 2-4S Lipo
• Gyro: MPU6000
• 2x UART ports
• OSD inbuilt
• BEC 5V 1.5 A
• Mounting holes: 25.5-26mm*25.5-26mm mm M2
• Weight: 7g
• BF target: Mamba F411
• Input voltage : 2-4S LiPo
• Continuous Current: 25A
• ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
• Target ：
• BETAFLIGHT MAMBA F411
• EMU  MAMBA F411
• FLIGHTONE FALCOX (HAS LICENSING FEE)

Frame

• Taycan MXC 25
• Wheelbase：125mm
• Weight：86g
• Prop Size：2.5 inch
• FC Mounting: 25.5x25.5mm -26x26mm (M2)
• Motor Mounting:9mm&12mm
• Top Plate: 1.5mm
• Bottom Plate: 1.5mm
• Aluminum Alloy：7075
• Carbon Fiber: T300 3K

Recommended Lipo Size

4S:

• 1300 mah （Flight time: 5-7min） - Stable Filming
• 750-1050 mah （Flight time: 3-5min） -  Faster Flight

Includes

• 1 x Diatone MXC-25 Taycan 25 4S 2.5" CineWhoop - Nebula Pro
