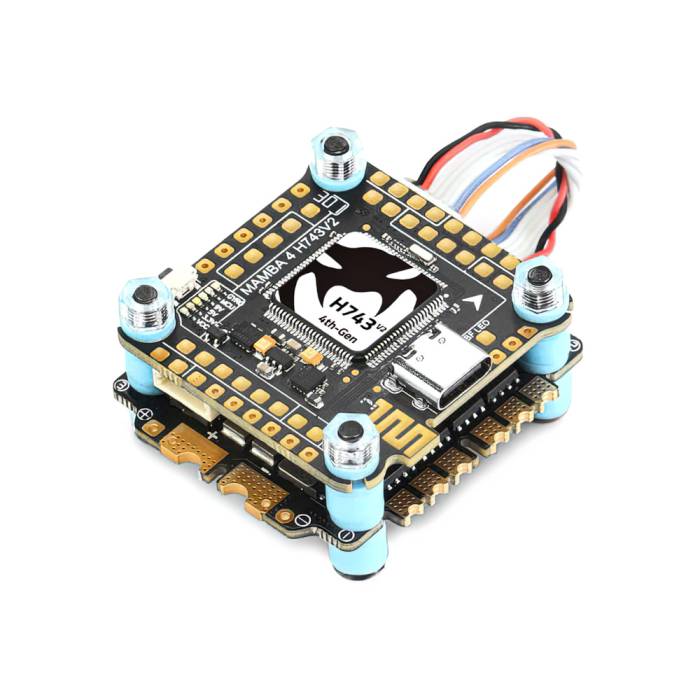

Diatone MK4 Stack - H743 V2 FC + F55 3-6S BLHeli_32 128K ESC

This Diatone MK4 Stack features an H743 V2 flight controller with an F55 3-6S BLHeli_32 128K ESC. This 4th generation flight controller features very large soldering pads and a dual ICM24688-P gyro.

• Dual ICM24688-P Gyro
• Large soldering pads
• 30.5x30.5 size
• Easy to use

MAMBA MK4 H743 V2 FLIGHT CONTROLLER

• LED Controller: BF LED/MB LED
• BEC: 3.3V 0.5A& 5V 3A& 9V 3A
• Blackbox: 128M Flash Memory
• Input: 3~6S Lipo (12.6~25.2V)
• ESC Soft: Dshot300/600/1200
• Target: MAMBA H743_2022B
• MCU: 480MHz STM32H743
• GYRO: DUAL ICM-42688-P
• Mounting size: 30.5mm/M3
• Receiver Protection: Yes
• WIFI: SpeedyBee APP
• ESC Telemetry: Yes
• TVS Protection: Yes
• AIR UNIT Port: Yes
• Barometer: SPL06
• ESC Signal: 8 Set
• VTX Switch: Yes
• Buzzer Pad: Yes
• CURR Pad: Yes
• Power Led: Yes
• Uarts: 8Set
• F.Port: Yes
• OSD: Yes
• RSSI: No
• I2C: Yes

65A 128K ESC

• Input voltage: 3~6S Lipo (12.6V~25.2V)
• Target：BLHeli_32 MAMBA F55_128K
• SOFT: Dshot300/600/1200
• Mounting size: 30.5mm/M3
• Continue current:55A×4
• Burst current:65A (10S)
• TVS Protection: Yes
• PWM:24~128K
• BEC: No

• 1x Diatone MK4 Stack - H743 V2 FC + F55 3-6S BLHeli_32 128K ESC
• 1x 1000uF 35V Capacitor
• 1x 6-Pin Air Unit Cable
• 1x AMASS XT60
• 2x 8-Pin Cable
