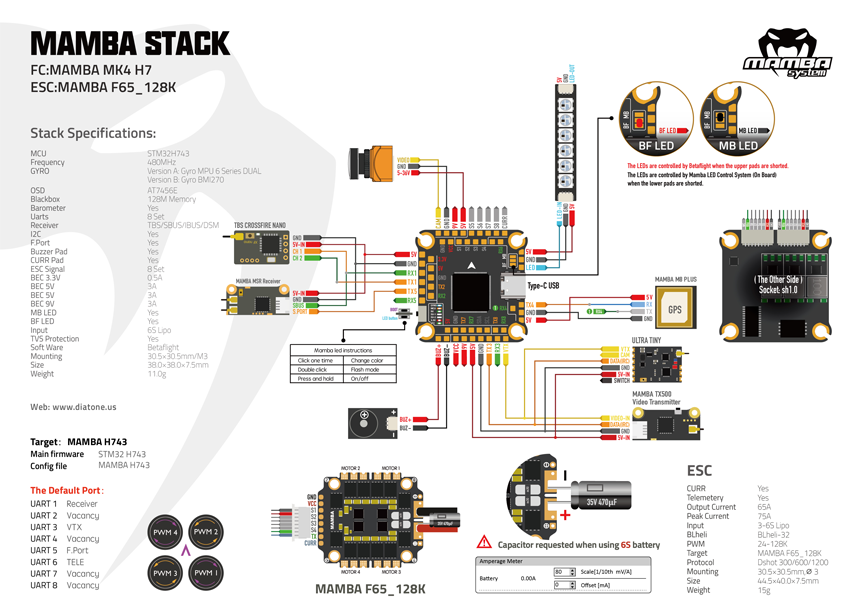

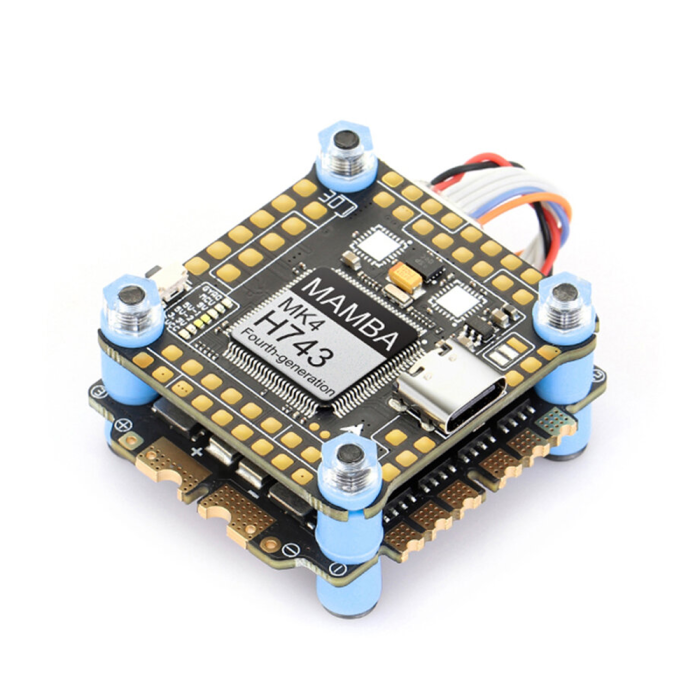

Diatone Mamba Stack - MK4 H743 FC + F65 65A 128K ESC

The Diatone Mamba Stack - MK4 H743 FC + F65 65A 128K ESC brings BIG power in a 30.5x305 mounting size! This stack can push 65A all while bringing you the latest features!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Brand: MAMBASYS
• Item Name: Mamba MK4 H743 65A
• Weight: 11g

FC

• MCU: 480MHz STM32H743
• GYRO: MPU 6 Series BMI270
• Barometer: Yes
• OSD: Yes
• Blackbox: 128M Flash Memory
• Uarts: 8Set
• ESC Signal:8Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller:BF LED/MB LED?4 Set 2812 LED?
• F.Port: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A (System Power)& 5V 3A(LED)& 9V 3A
• MOUNTING: 30.5mm,M3

65A ESC

• MAMBA F65_128K
• NPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT:65A?4
• BURST CURRENT:75A (10S)
• BEC: No
• Target: BLHeli_32 MAMBA F65_128K
• SOFT: Dshot300/600/1200
• PWM: 24~128K
• TVS Protection: Yes
• MOUNTING: 30.5mm/M3

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Mamba MK4 H743 Flight controller
• 1x MAMBA 128K 65A/55A ESC
• 1x High-Frequency 470uF/35V
• 2x 8pin sh1.0
• 2x 12AWG 100mm
• 1x AMASS Original XT60
