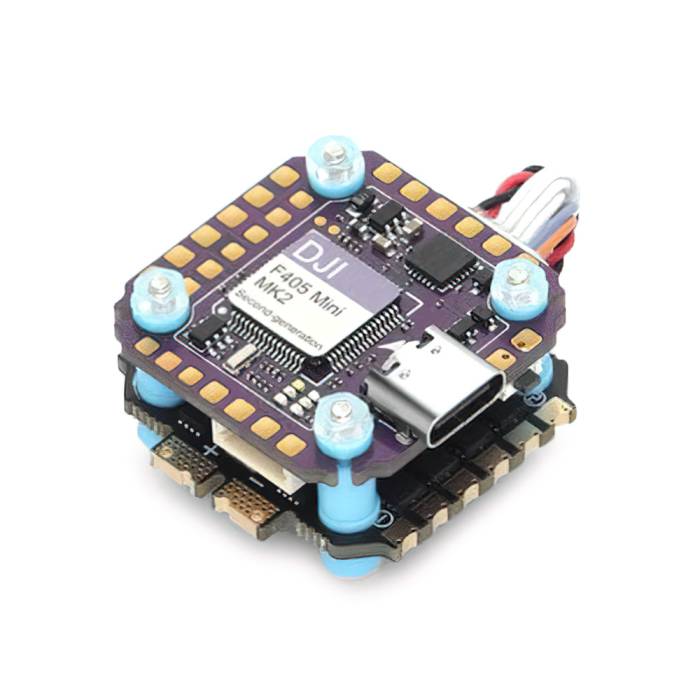

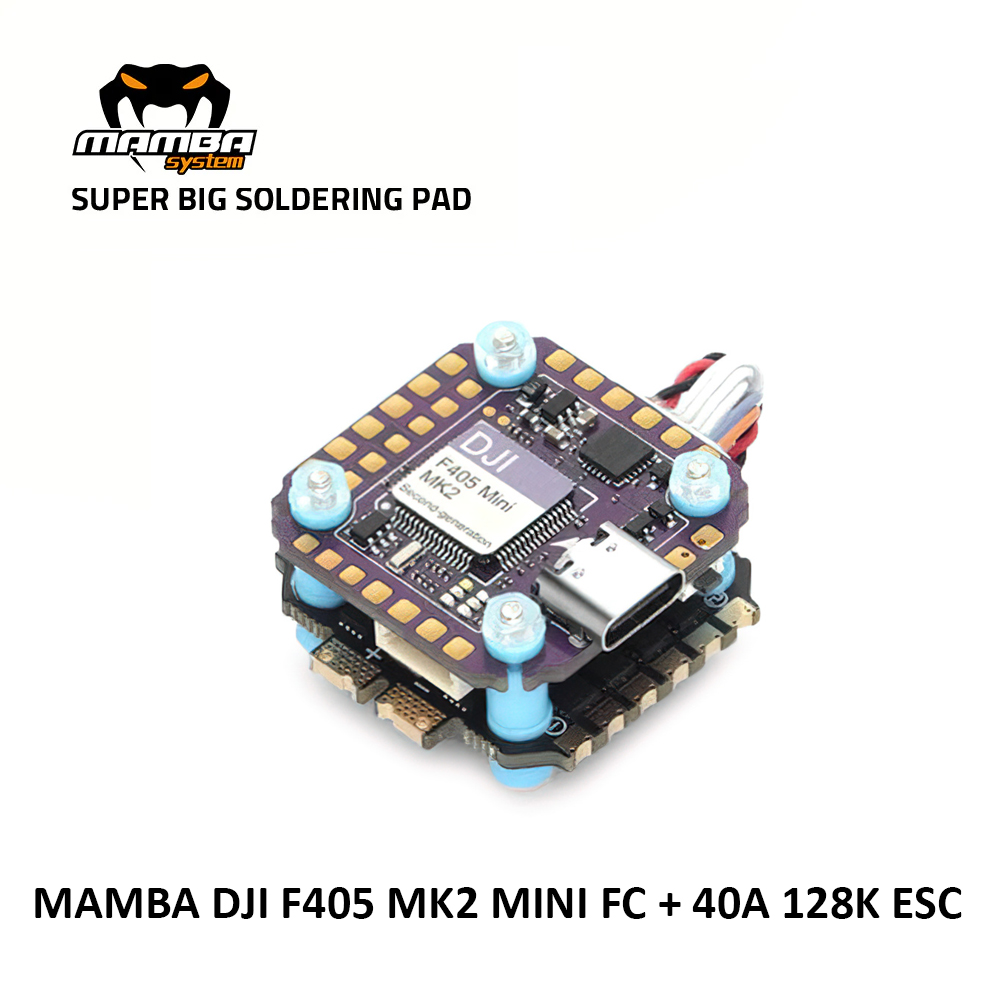

Diatone Mamba Stack - DJI F405 MK2 FC + F40 40A 128K ESC - Mini 20x20

The Diatone Mamba F405 DJI Mini Stack brings BIG power all in a mini 20x20 mounting size! This stack can push 40A all while bringing you the latest features! The built-in plug-in allows you to easily connect to the DJI FPV Air System.

Features

• Easily connect to the DJI FPV Air System.
• DJI F405 MK2 Mini Flight Controller
• F40 40A 128K Mini ESC
• 6 UARTs
• BEC

Specifications

DJI F405 MK2 MINI FC

• MCU: 168MHz STM32F405RGT6
• BEC:3.3V 0.5A& 5V 2.5A /9V 2A
• ESC Soft: Dshot300/600/1200
• Input: 2~6S Lipo (8.4~25.2V)
• MOUNTING: 20mm, M2
• LED Controller: BF LED
• TVS Protection: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• Blackbox: No
• Uarts: 6 Set
• F.Port: Yes
• Buzz: Yes
• OSD: Yes
• RSSI: No

MAMBA F40 128K MINI ESC

• Target：BLHeli_32 MAMBA F40_128K_MINI
• INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
• CONTINUE CURRENT: 40A×4
• BURST CURRENT: 45A (10S)
• MOUNTING: 20mm,M3/M2
• SOFT: Dshot300/600/1200
• TVS Protection: Yes
• BEC: No

Includes

• 1x Diatone Mamba Stack - DJI F405 MK2 FC + F40 40A 128K ESC - Mini 20x20
• 2x 12AWG 100mm Cable
• 1x AMASS Original XT60
• 1x 470uF/35V Capacitor
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
