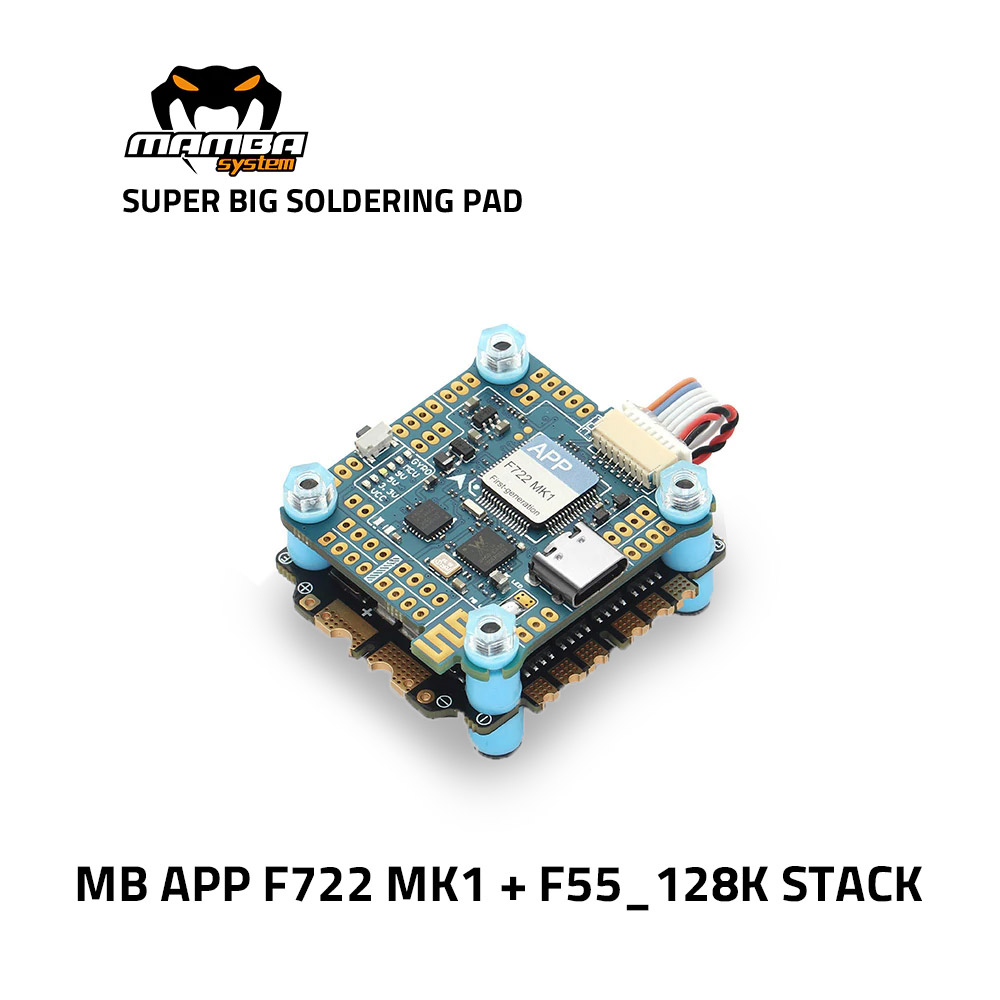

Diatone Mamba Stack - APP (WiFi) F722 MK1 FC + F55 55A 128K ESC

The Diatone Mamba APP F722 MK1 FC 55A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 55A all while bringing you the latest features, including WiFi capabilities with the SpeedyBee App! This is the 128K version.

Features

• Built-In WiFi with the SpeedyBee App
• 128K Firmware

Specifications

MAMBA APP F722 MK1 FC

• LED indicator: Blue&Orange for FC Status, Green 9V, White 5V, Red 3.3V
• BEC: 3.3V 0.5A & 5V 3A (System Power) & 5V 3A(LED) & 9V 3A
• LED Controller: BF LED/MB LED (4 Set 2812 LED)
• MCU: 216MHz STM32F722RET6
• ESC Soft: Dshot300/600/1200
• Mounting Pattern: 30.5mm/M3
• Blackbox: 16M Flash Memory
• Input: 3~6S Lipo (12.6~25V)
• WIFI: SpeedyBee APP
• ESC Telemetry: RX6
• TVS Protection: Yes
• Smart audio: Yes
• IMU: MPU6000
• Barometer: No
• OSD: BF OSD
• Uarts: 6Set
• Buzz: Yes

F55 55A 3-6S 4-in-1 128K ESC

• Input Voltage: 3~6S Lipo (12.6V~25V)
• Target: BLHeli_32 MAMBA  F55_128K
• Mounting: 30.5×30.5mm, M3
• Continuous Current: 55A
• ESC Dshot300/600/1200
• PWM Range: 24-128K
• TVS Protection: Yes
• Burst Current: 65A
• BEC: NO

Includes

• 1x Diatone Mamba Stack - APP (WIFI) F722 MK1 FC + F55 55A 128K ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x Mounting Adapter
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
• 1x Capacitor
