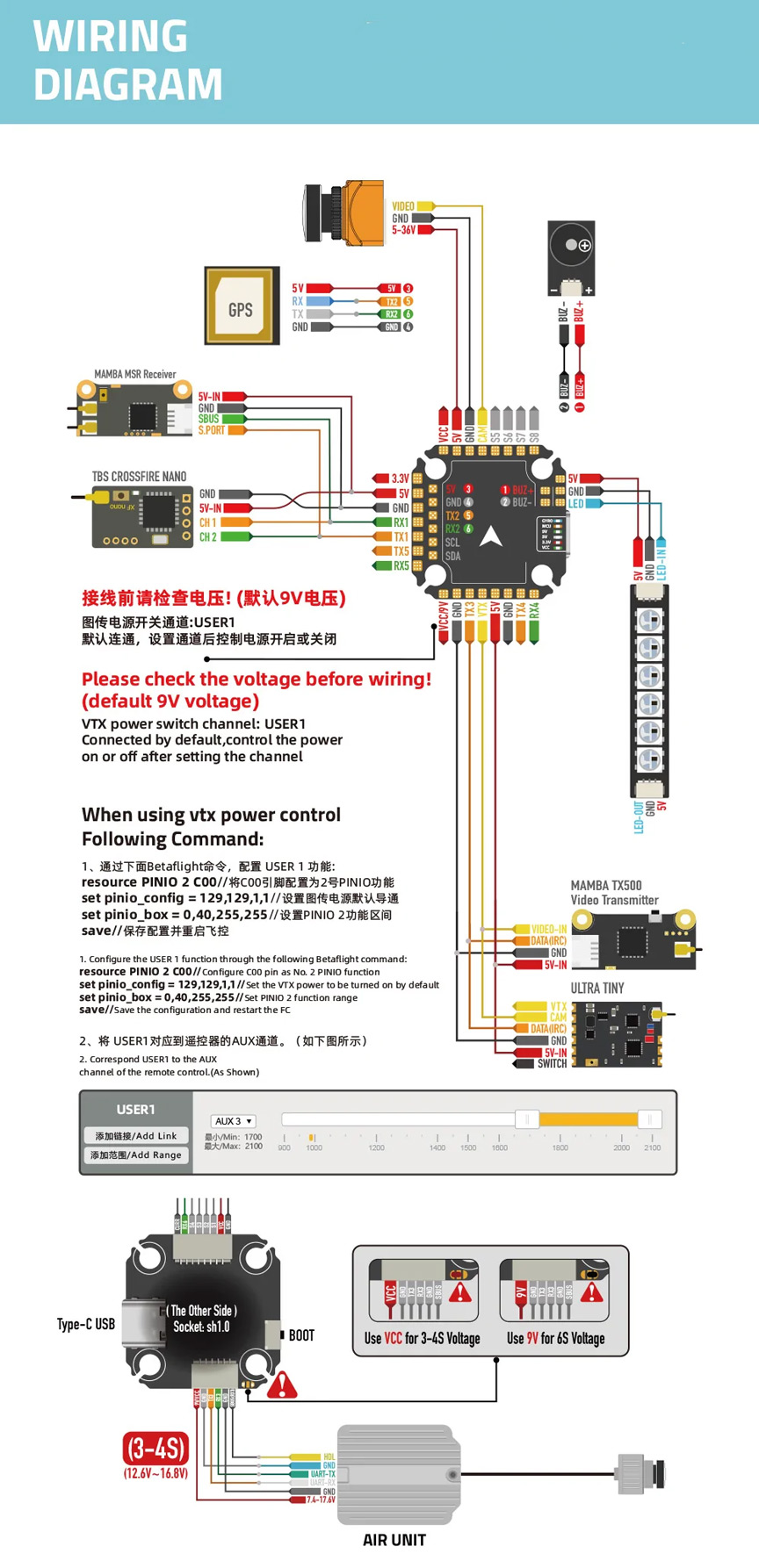

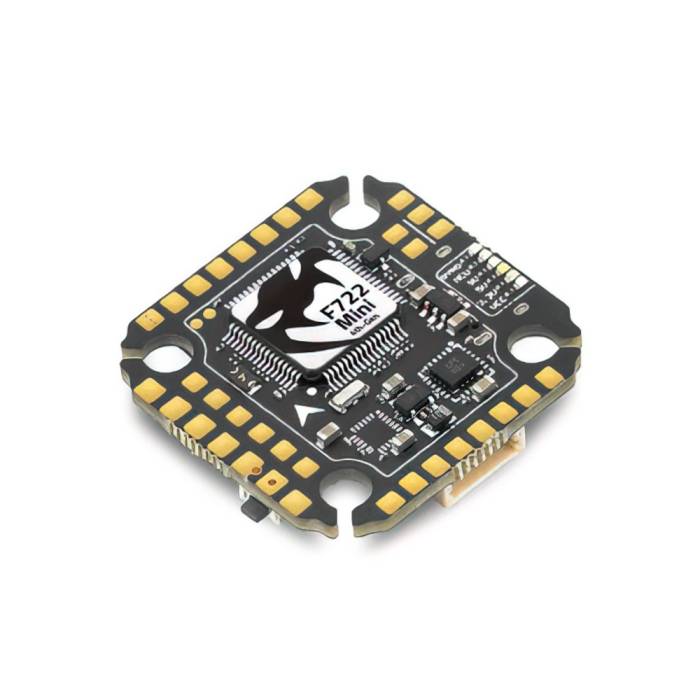

Diatone Mamba MK4 F722 Mini Flight Controller (BMI270)

The Diatone Mamba MK4 Mini is an F722 Flight Controller with a BMI270 Gyro, making this FC the perfect addition to your FPV build.

MK4 UPDATES

• Upgraded the twisted pair anti-jamming cable, and the reinforcement process
• MINI series upgraded DJI interface and 5V 15W/9V 18W 2 set BEC
• Miniseries FC use 2mm and 3mm fixing holes
• The entire series supports 6 set uart and |2C
• A full range of integrated Flash and Baro
• MP9943 synchronous rectifier BEC
• The pad area increased by 30%
• Pad spacing increased by 100%
• The whole series uses Type-C
• 32Bit ESC all support 128K
• 4set power protection

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

• 16M Flash Memory Blackbox
• 20x20mm Mounting Pattern
• 3~6S Lipo (12.6~25.2V) Input
• BMI270 GYRO
• 6 Uarts
• Buzzer
• OSD

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• GYRO Version A: Gyro BMI270
• Mounting: 20.0x20.0mm,M3/M2
• Receiver: TBS/SBUS/IBUS/DSM
• Receiver Protection: Yes
• Blackbox: 16M Memory
• Size: 29.0x29.5x6.5mm
• Frequency: 216MHz
• Software: Betaflight
• BEC Protection: Yes
• TVS Protection: Yes
• AIR UNIT Port: Yes
• MCU: STM32F722
• ESC Signal: 8 Set
• VTX Switch: Yes
• Buzzer Pad: Yes
• Barometer: Yes
• OSD: AT7456E
• CURR Pad: Yes
• BEC 3.3V: 0.5A
• Input: 6S Lipo
• BEC 5V: 2.5A
• Weight: 6g
• Uarts: 6 Set
• BEC 9V: 2A
• BF LED: Yes
• F.Port: Yes
• 12C: Yes

(INSERT VTX TITLE HERE IN BOLD CAPS)

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Diatone Mamba MK4 F722 Mini Flight Controller (BMI270)
• 5x M3 ESC Isolation Dampers
• 5x M2 ESC Isolation Dampers
• 5x M3 Silicone Dampers
• 5x M2 Silicone Dampers
• 1x 6-Pin Air Unit Cable
• 2x 8-Pin Cable
