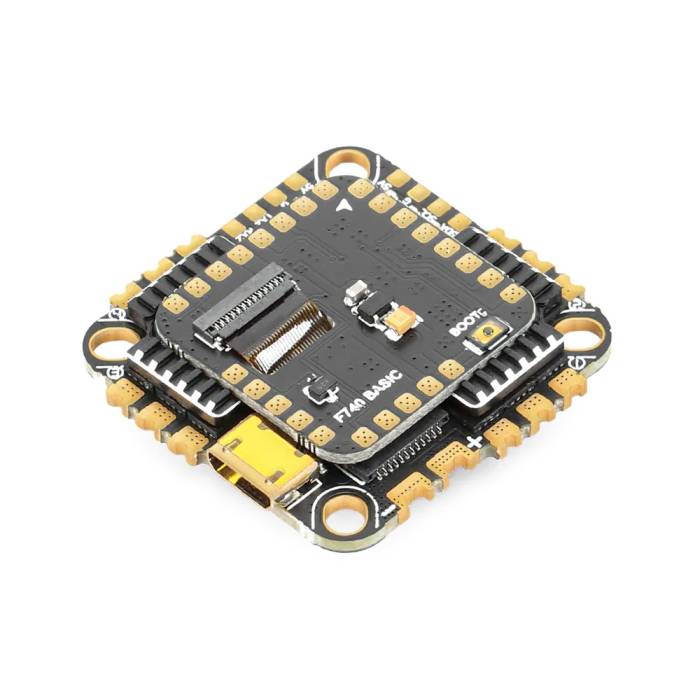

Diatone Mamba MK4 F740 AIO - F722 BASIC FC + 40A 6S BLHeli_32 ESC - 25x25

Introducing the Diatone Mamba MK4 AIO - F740 BASIC FC + 40A 6S BLHeli_32 ESC - 25x25. This is a full-featured all-in-one flight controller and ESC that is perfect for Sub 250g, 3, 4, and 5-inch quads. It is equipped with an F7 processor, 40A ESC, Barometer, OSD Chip, 16M of Blackbox memory, and a connector to make connecting your video transmitter of choice a breeze.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

•  25.5 x 25.5mm Mounting Pattern
• 16M Flash Memory Blackbox
• 3~6S Lipo (12.6~25.2V) Input
• MAMBA MK4 F740 APP FC
• ICM42688P GYRO
• F40_128K ESC
• 6 Uarts
• Buzzer
• OSD

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

FC

• Blackbox: 16 M Flash Memory

• Input: 3~6S Lipo (12.6~25.2V)

• MCU: 216MHz STM32F722

• Target: MAMBA F740_2022B

• Receiver Protection: Yes

• ESC Soft: Dshot300/600

• LED Controller: BF LED

• BEC: 3.3V 0.5A&  5V 2A

• Motor Signal: 4 Set

• BEC Protection: Yes

• TVS Protection: Yes

• ESC Telemetry: Yes

• Power Led: Yes

• AIR UNIT Port: Yes

• GYRO: ICM-42688-P

• Barometer: Yes

• Uarts: 6 Set

• WIFI: NO

• F.Port: Yes

• Buzz: Yes

• OSD: Yes

• RSSI: No



ESC

• Target: BLHeli_32 MAMBA F40_128K

• ESC Protocol: Dshot300/600

• Input: 3~6S Lipo (12.6~25.2V)

• Continue Current: 40A×4

• Burst current: 45A (10S)

• PWM:24~128K

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Diatone Mamba MK4 AIO - F740 BASIC FC + 40A 6S BLHeli_32 ESC - 25x25
