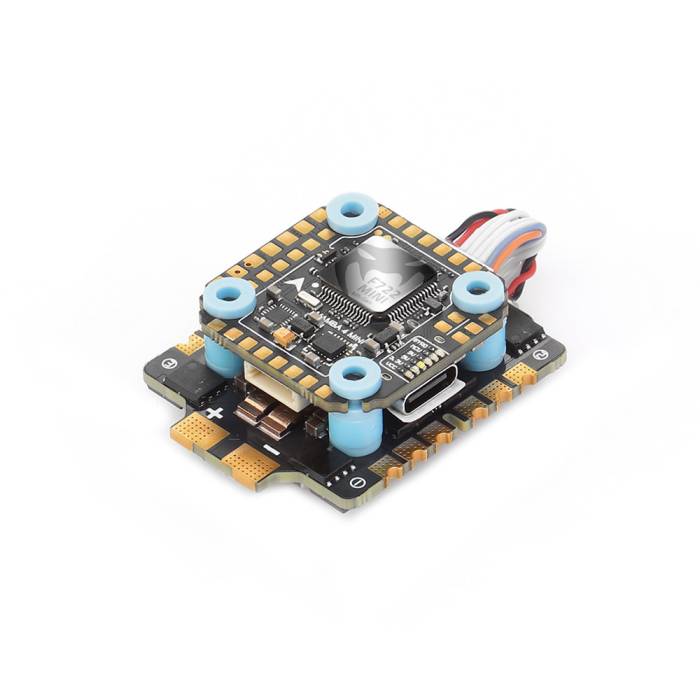

Diatone Mamba Mini Stack - F722 MK4 FC (MPU6000) + Reactor 66A 3-6S BLHeli_32 128K ESC

The Diatone Mamba Mini Stack features an F722 MK4 flight controller with MPU6000 gyro and the new Mamba5 Reactor, a 66A 4-8S ESC with BLHeli_32 firmware and 128K PWM. Get all the power you need with this powerful 20x20 stack!

• Mamba F722 MK4 Mini FC (ICM4268P)
• Mamba5 Reactor 66A 128K Mini ESC
• 20x20 Mounting Pattern
• MPU6000

MAMBA F722 MK4 FLIGHT CONTROLLER (MPU6000)

• MPU6000BEC:3.3V 0.5A&  5V 2.5A& 9V 2A
• Input: 3~6S Lipo (12.6~25.2V)
• Target：MAMBA F722_2022A
• Mounting size: 20mm, M2/M3
• Blacbox: 16M Flash Memory
• MCU: 216MHz STM32F722
• Receiver Protection: Yes
• ESC Soft: Dshot300/600
• MAMBA MK4 F722MINI
• LED Controller: BF LED
• BEC  Protection: Yes
• TVS Protection: Yes
• ESC Telemetry: Yes
• AIR UNIT Port: Yes
• Barometer: SPL06
• ESC Signal: 8 Set
• GYRO: MPU6000
• Buzzer Pad: Yes
• VTX Switch: Yes
• CURR Pad: Yes
• Power Led: Yes
• Uarts: 6 Set
• F.Port: Yes
• OSD: Yes
• RSSI: No
• I2C: Yes
• WIFI: No

MAMBA5 REACTOR 66A 128K ESC

• Target: BLHeli_32 MAMBA5_Reactor_66
• Input voltage: 4~8S Lipo (16.8V~33.6V)
• Mounting size: 20mm, M2/M3
• SOFT: Dshot300/600/1200
• Burst current: 105A (10S)
• Continue Current: 66A×4
• PWM: 24~128K
• BEC: No

• 1x Diatone Mamba5 Reactor 66A 4-8S BLHeli_32 128K Mini ESC
• 1x Diatone Mamba F722 MK4 Mini FC (MPU6000)
• 1x High Frequency 1000uF/35V
• 1x High Frequency 470uF/50V
• 2x AMASS Original XT60
• 2x 12AWG 100mm Wire
• 1x AIR UNIT SH1.0
• 2x 8pin sh1.0
