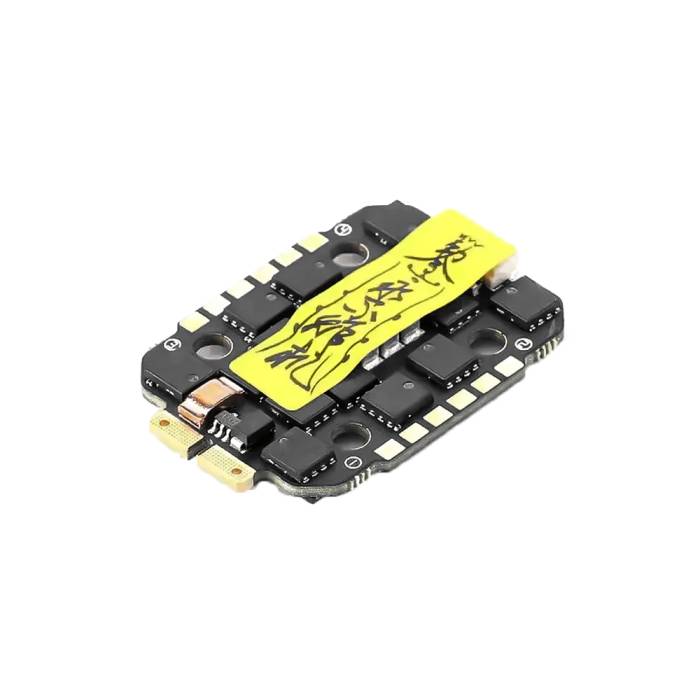

Diatone Mamba MINI F65 BLHeli_32 4-in-1 6S 128K ESC - 65A

The Diatone MAMBA F65_128K MINI BLHeli32 4IN1 ESC 65A 6S series offers a BL32 ESC with incredible performance.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Accepts an input voltage range of 3-6S LiPo.
• Delivers a continuous current of 65A, and 75A burst.
• Designed without an onboard BEC for streamlined power distribution.
• Offers compatibility with Dshot300, Dshot600, and Dshot1200, enhancing flight control versatility.
• Provides a PWM frequency range from 24~128K for expansive motor control.
• Comes equipped with TVS protection to shield against potential voltage spikes.
• Features a mounting size of 20x20 with M2 or M3 holes for broad drone frame compatibility.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Input voltage: 3-6S LiPo
• Continuous current: 65A×4
• Burst current: 75A (10Seconds)
• BEC: No
• Target: BLHeli_32 MAMBA F65_128K
• Soft: Dshot300/600/1200
• PWM: 24~128K
• TVS protection: Yes
• Mounting: 20x20mm,M2/M3
• Dimensions:  43.5x31.0x6.0mm

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Diatone MAMBA F65_128K MINI BLHeli32 4IN1 ESC 65A 6S
• 1x 8pin sh1.0 ×2
• 1x AMASS Original XT60
• 1x High-Frequency 470uF/35V

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS
