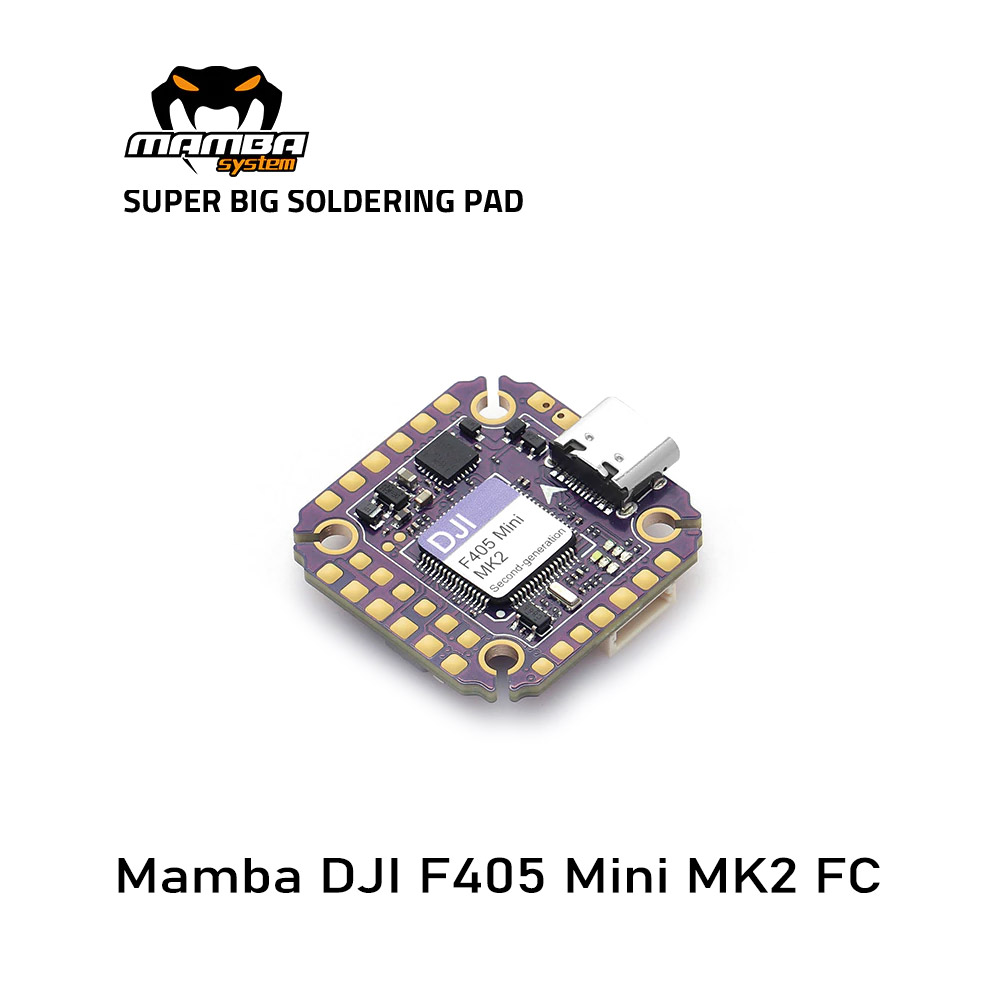

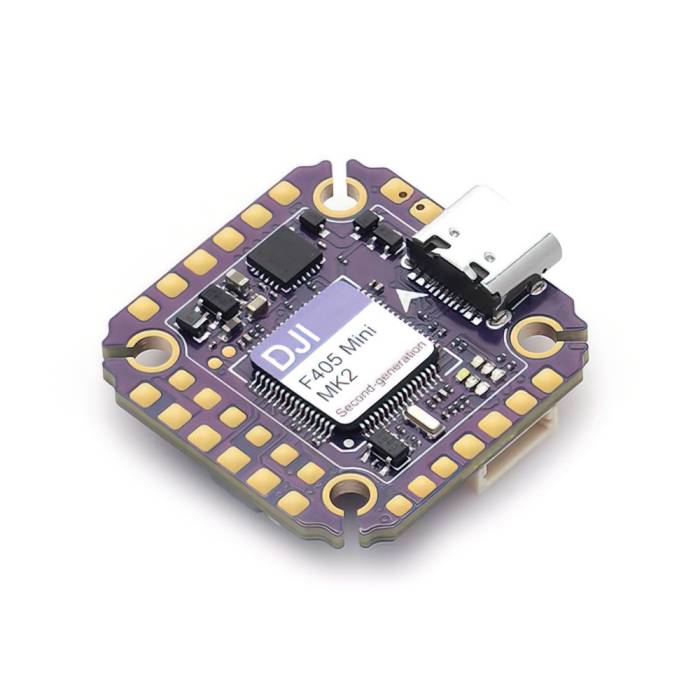

Diatone Mamba DJI F405 MK2 Flight Controller - Mini 20x20
$45.99
Out of Stock
Only left for same day shipping. Order now!
Diatone Mamba DJI F405 MK2 Flight Controller - Mini 20x20
The Diatone Mamba F405 DJI Mini MK2 FC brings BIG power all in a mini 20x20 mounting size! The built-in plugin allows you to easily connect to the DJI FPV Air System.
About this product
The Diatone Mamba F405 DJI Mini MK2 FC brings BIG power all in a mini 20x20 mounting size! The built-in plugin allows you to easily connect to the DJI FPV Air System.
Features
- Easily connect to the DJI FPV Air System.
- MK2 Version
Specifications
- MCU: 168MHz STM32F405RGT6
- BEC:3.3V 0.5A& 5V 2.5A /9V 2A
- ESC Soft: Dshot300/600/1200
- Input: 2~6S Lipo (8.4~25.2V)
- MOUNTING: 20mm, M2
- LED Controller: BF LED
- TVS Protection: Yes
- GYRO: MPU6000
- Power Led: Yes
- Barometer: Yes
- Blackbox: No
- Uarts: 6 Set
- F.Port: Yes
- Buzz: Yes
- OSD: Yes
- RSSI: No
Includes
- 1x Diatone Mamba DJI F405 MK2 Flight Controller - Mini 20x20
- 1x Connecting Wires Set
- 1x Damper Set
More Information
| SKU | 16407 |
|---|---|
| UPC (GTIN) | 764613342154 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Flight Controller Processor | F4 |
