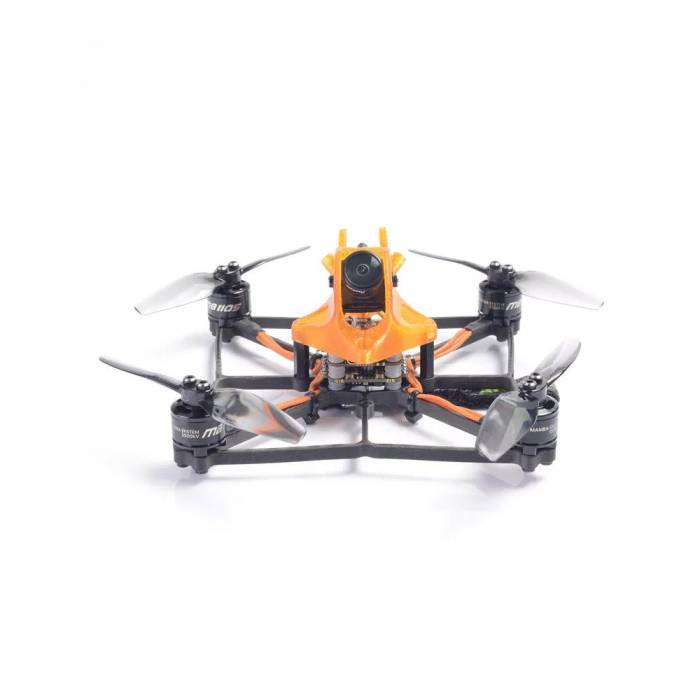

Diatone GTB 329 Cube FPV Racing Drone - PNP

In collaboration with KababFPV, the Diatone GTB 329 Cube Racing Drone is sure to impress you! Packed with high-end components, like the RunCam Nano 2 Camera, Mamba F411 Nano FC, TBS Unify Pro32 Nano VTX and more! This toothpick quad is sure to give you that boost and performance you are looking for!

Note: This does NOT  include a receiver

Features

• Mamba F411 16×16mm Nano Flight Controller Stack
• Runcam Nano 2 FPV Camera
• TBS Unify Pro32 Nano 200mW VTX

Specification

General

• FC: Mamba F411 Nano
• ESC: Mamba 134 Nano
• Camera: RunCam Nano2
• Antenna: Copper Dipole
• VTX: TBS Unify Pro32 Nano
• Motor: MAMBA 1103 6500KV
• Props: 3inch
• Recommended Battery: 2S 550mAH
• Bottom Plate Thickness: 3mm
• Weight: ~47g

Flight Controller

• MCU: STM32F411
• IMU: MPU6000
• Baro: No
• OSD: BF OSD
• Blackbox: NO
• Firmware: Betaflight
• Target: MambaF411
• ESC Soft: Dshot300/600/1200
• Input: 2~4S Lipo (8.4~16.7V)
• BEC: 5V 1.5A

ESC

• Input Voltage: 2-4S (8.4~16.7V)
• Max Continuous Current: 12A x4
• BEC: NO
• Protocol: DSHOT600
• Mounting: 20x20mm, M2

Includes

• 1 x Diatone GTB 329 Cube FPV Racing Drone - PNP

Downloads

FC Firmware

• BetaFlight
• Mamba F411
