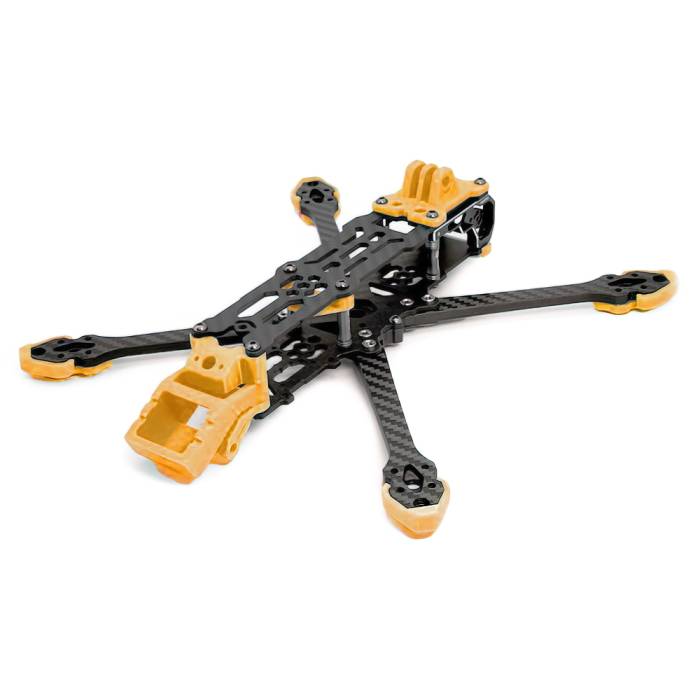

Axisflying Manta 5" True X Freestyle Frame Kit w/ 3D Printed Parts

The Axisflying Manta is a 5" frame with a unique True-X design. This frame has an innovative aluminum base plate for fast and easy arm swaps. 3D Printed Parts are included!

VIDEO: AxisFlying Manta Frame - (By Vitrifly on Youtube)

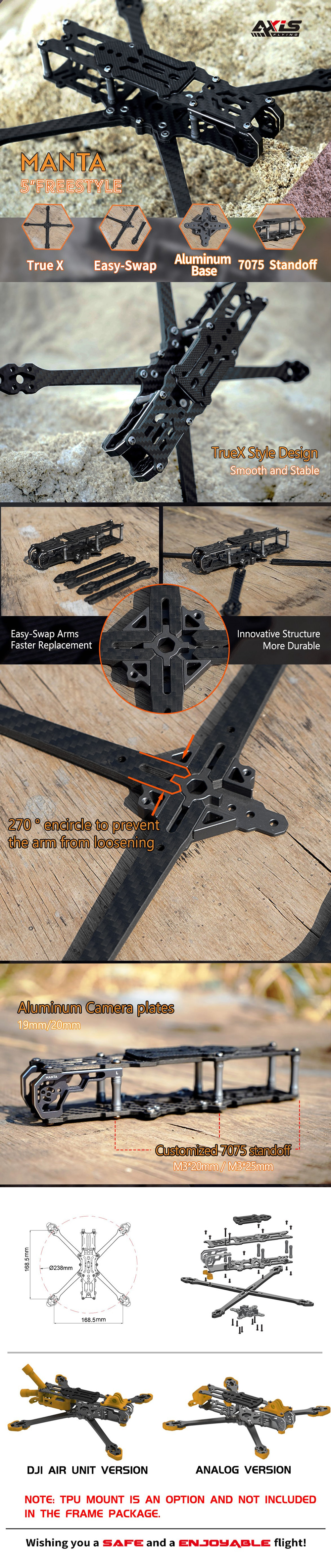

Features

• 7075 Hard Aluminum Standoffs
• Easy Arm Swap Design
• Aluminum Base Plate
• True-X Design

Specifications

• Stack Options: 20x20 / 30.5x30.5mm
• Bottom Plate Thickness: 2.5mm
• Bottom to Top Distance: 25mm
• Top Plate Thickness: 2.5mm
• Frame Type: HD and Analog
• Motor Mounting: 16x16mm
• Arm Width: 14mm~9.5mm
• Camera Space: 20mm
• Carbon Material: T700
• Size: 168.5x168.5mm
• Arm thickness: 5mm
• Wheelbase: 228mm
• Geometry: True-X
• 3D Parts: Analog
• Model: Manta 5
• Weight: 126g

Downloads

• 5inch MANTA Standard TPU
• 5inch MANTA Analog TPU
• 5inch MANTA HD TPU

Includes

• 1x Axisflying Manta Aluminum Base Plate
• 2x Axisflying Manta Camera Side Plate
• 1x Axisflying Manta Bottom Plate
• 1x Axisflying Manta Top Plate
• 4x Axisflying Manta 5" Arm
• 4x M3 25mm Standoffs
• 2x M3 20mm Standoffs
• 1x 3D Printed Part Set
• 1x Hardware Kit
• 1x Battery Pad
• 2x Polish Stick
• 1x LiPo Strap
• 1x Manual
• Note: This frame works for both HD and Analog, but the 3D Printed Parts provided are for Analog.
